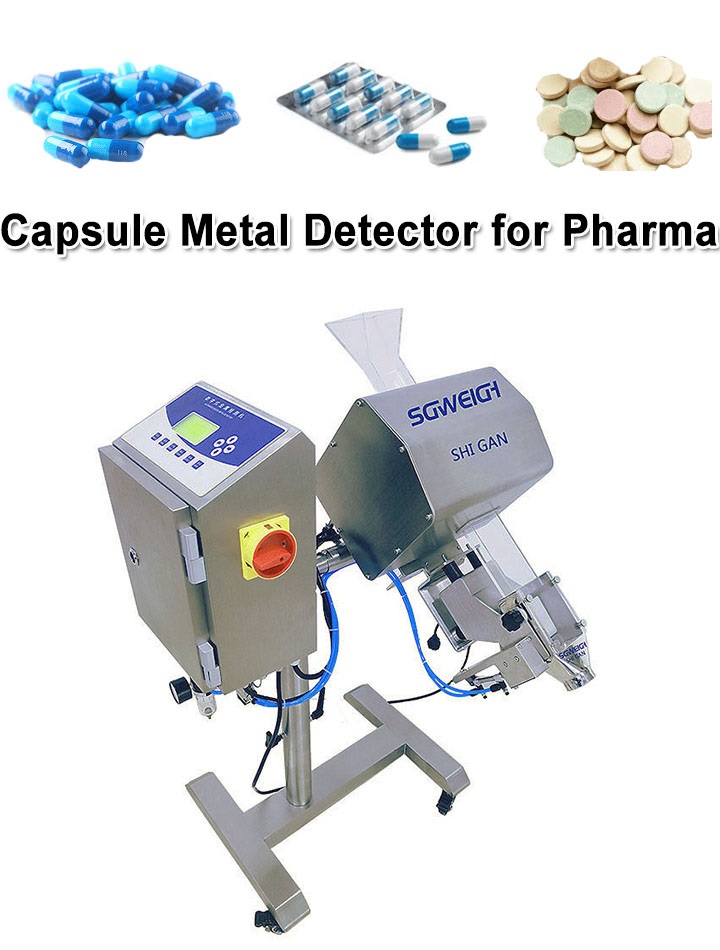

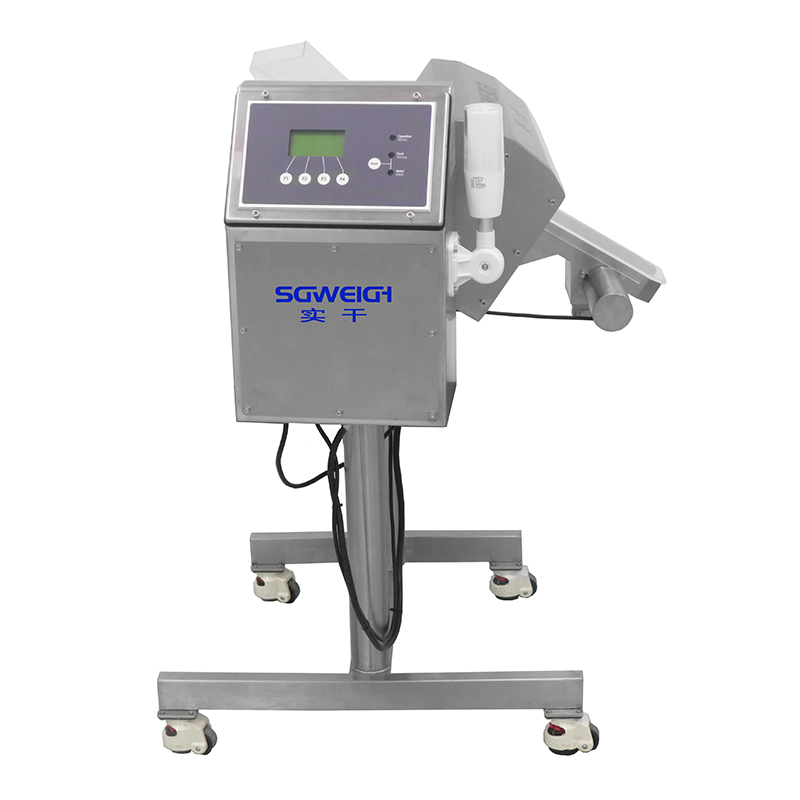

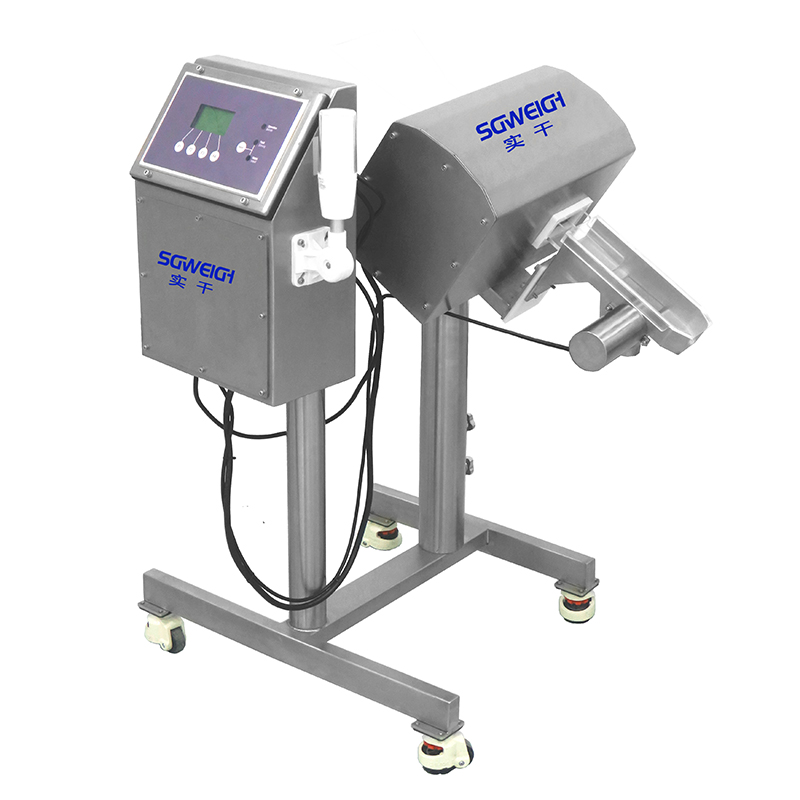

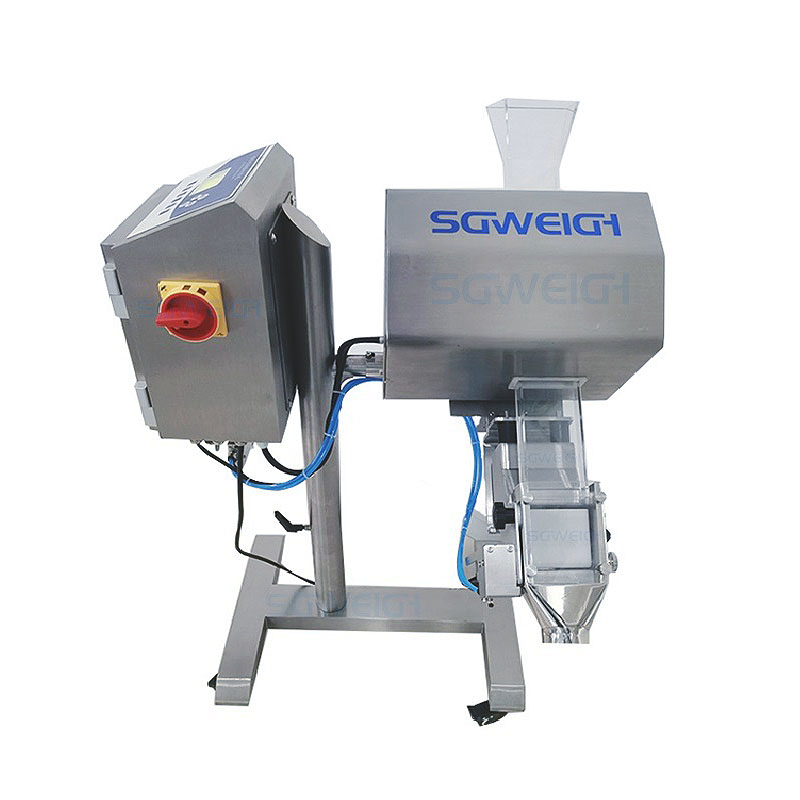

■ Product Introduction

During operation, the Pharma Metal Detectors provides perfect (100%) detection, thus reducing material loss and not affecting normal production.Tablets and Capsules Metal Detection Machine is mainly used for pre-packaging metal detection in the pharmaceutical industry and can detect solid pharmaceuticals such as tablets, soft and hard capsules, pills, etc.

■ Tech Specifications

Type:SG-M50

Inlet height: 770-930mm Port size: 76mm

Outlet Height: 770-860mm Port size: 51mm

Effective passing size: W70*H20mm

Maximum production capacity: 500,000 pcs/hour

Sensitivity(adjustable or not):Yes

Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm

Machine weight: 75kg

Removal method: flip culling

Working voltage: 220V/110V, 50/60HZ

■ Main Features

1. 100% in-line inspection of capsules and tablets.

2. Ensures the highest quality by rejecting tablets and capsules containing traces of metal.

3. Highly sensitive to all metals (including non-magnetic and stainless steel).

4. Compatible with all major tablet presses.

5. Easy assembly and disassembly of product-contact components.

■ Application

■ Company

■ Customers

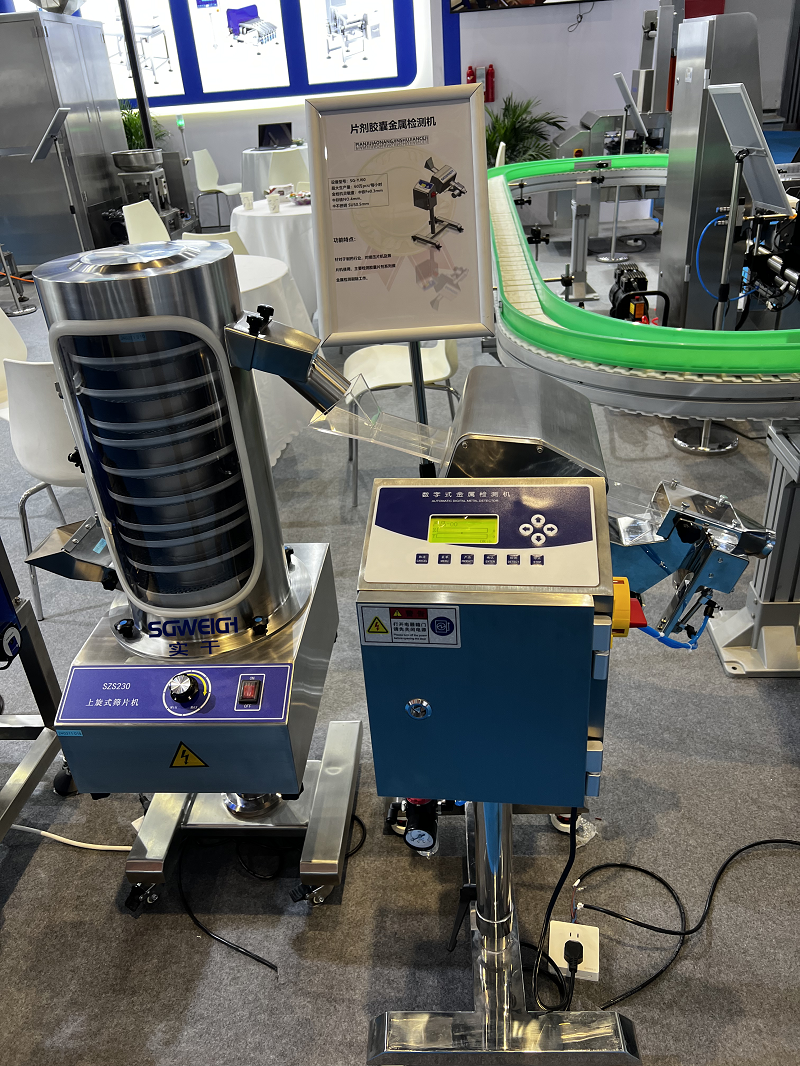

■ Exhibitions

■ Package & Shipping

Inner use the plastic wrapping ,out package will use stronger wooden cases.

Our standard package process:

1) Dust & Cleaning

2) Lubricate Drive Parts

3) Divide Machine Into Modules

4) Wrap Modules With Plastic Film

5) Packing Modules into Plywood Cases

6) Mark Shipping Mark In The Cases

If any special requirements, we will pack it as requested.
