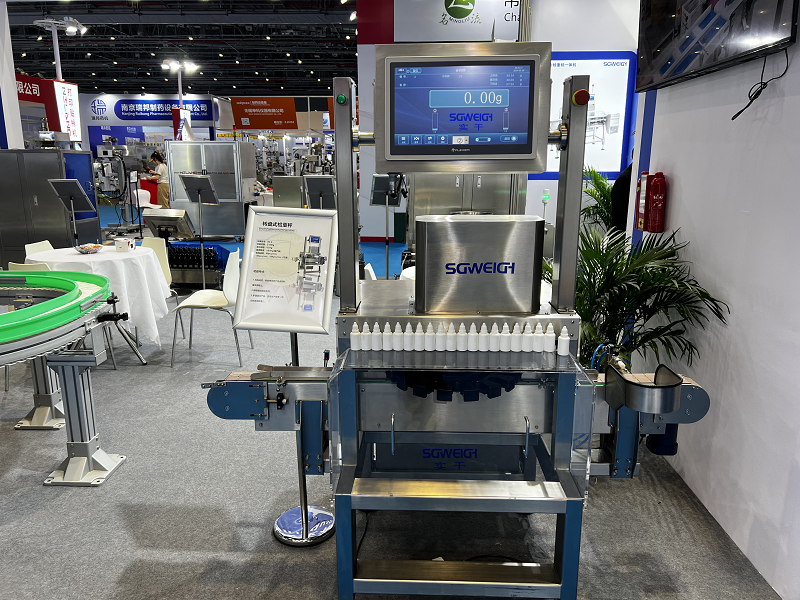

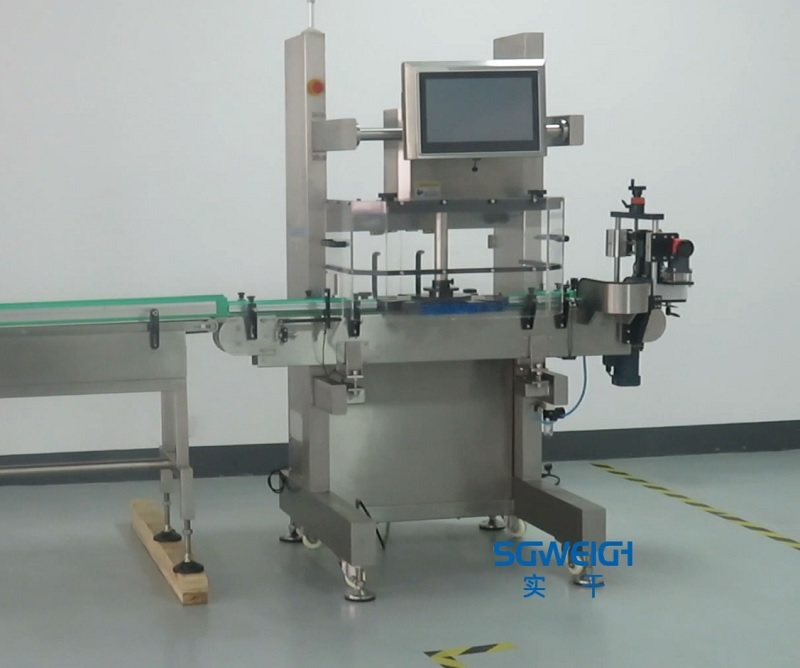

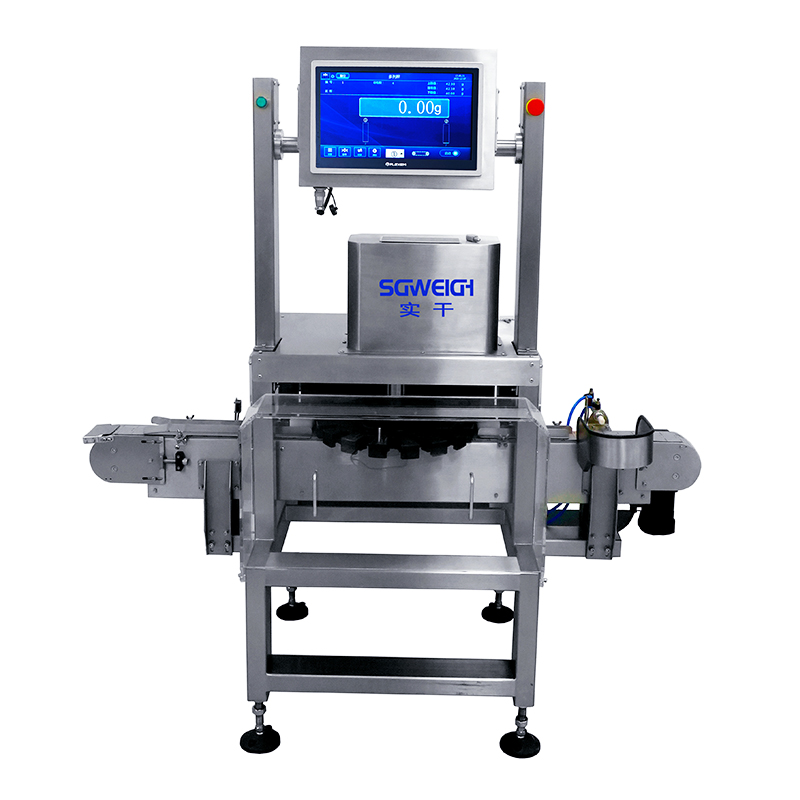

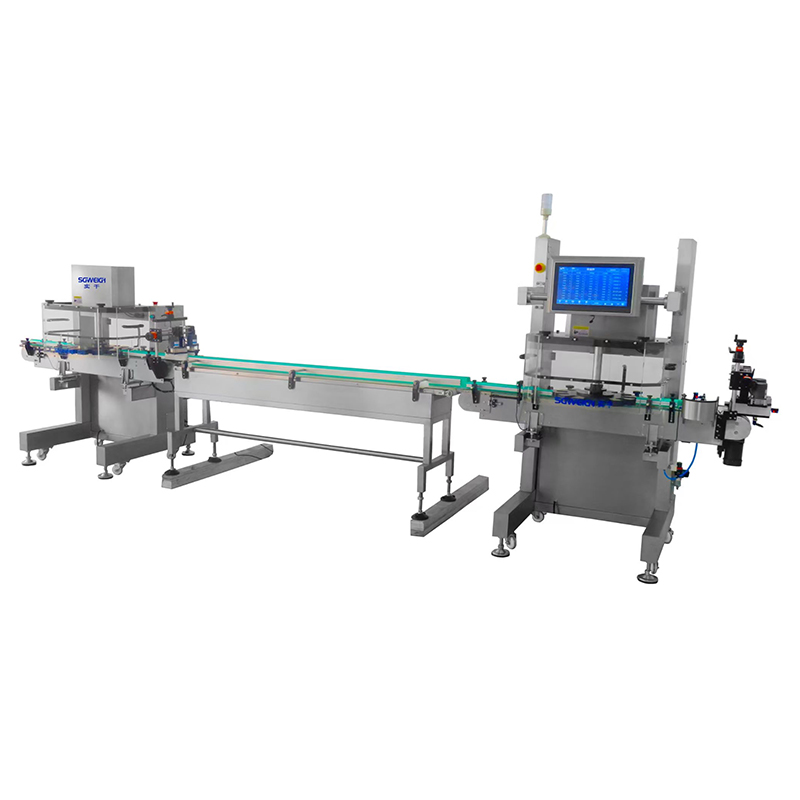

Touch Screen Pharmaceutical Rotary Checkweighers measure cylindrical products such as aerosols, glass and plastic bottles at high speed and can be easily integrated into production lines.Products exceeding a defined weight value are separated from the production line by a specially designed rejection mechanism.
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Default Chinese and English operation interface.
3. Adjustable conveyor belt speed.
4. Three-level password protection for parameter settings, only management personnel can operate.
5. Product weighing data can be exported via USB.

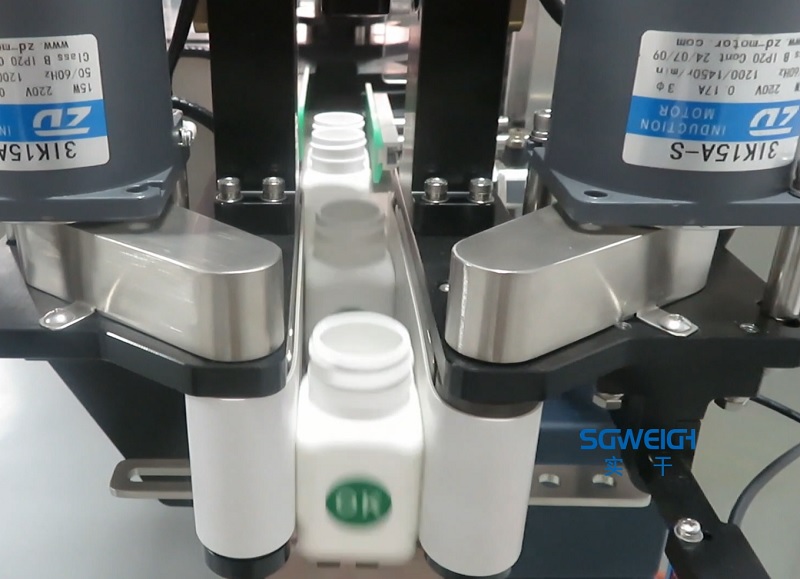

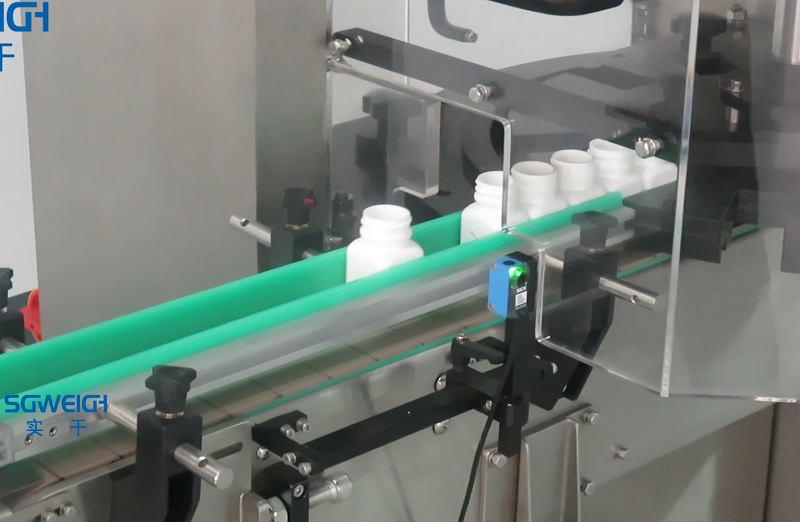

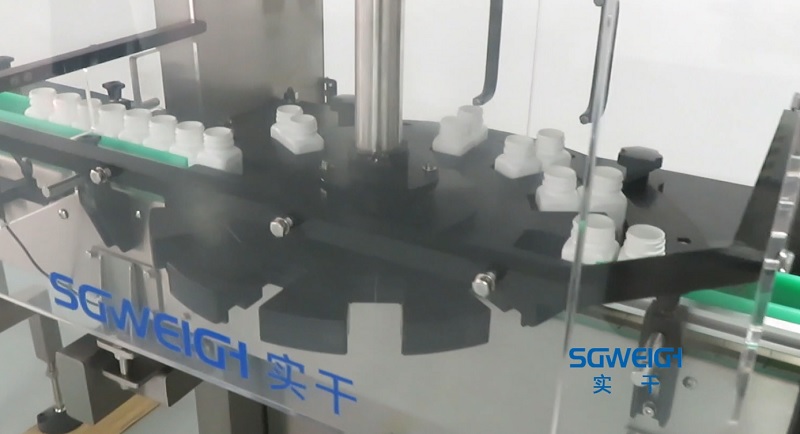

6. Photoelectric positioning, the turntable accurately delivers the product to the weighing sensor.
7. 100 product recipes are preset and stored.
8. Data statistics function.

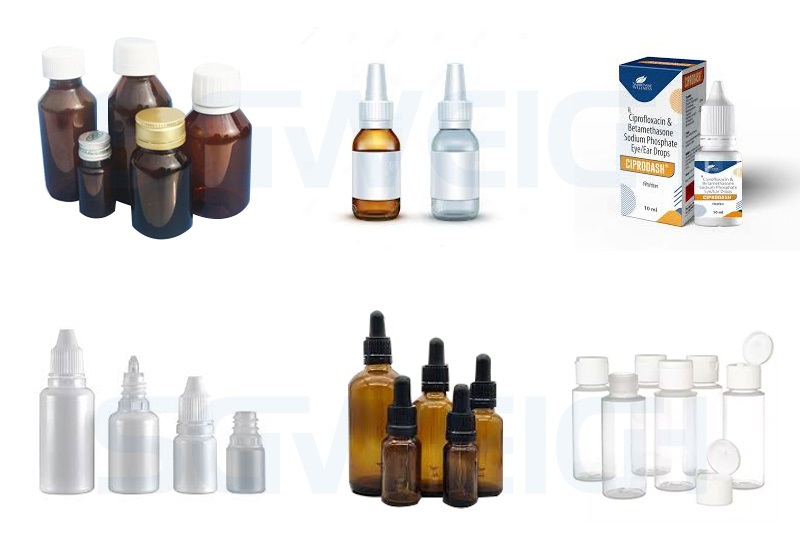

Tablets, capsules, granules, dragees, oral liquids, syrups etc.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
