■ Product Introduction

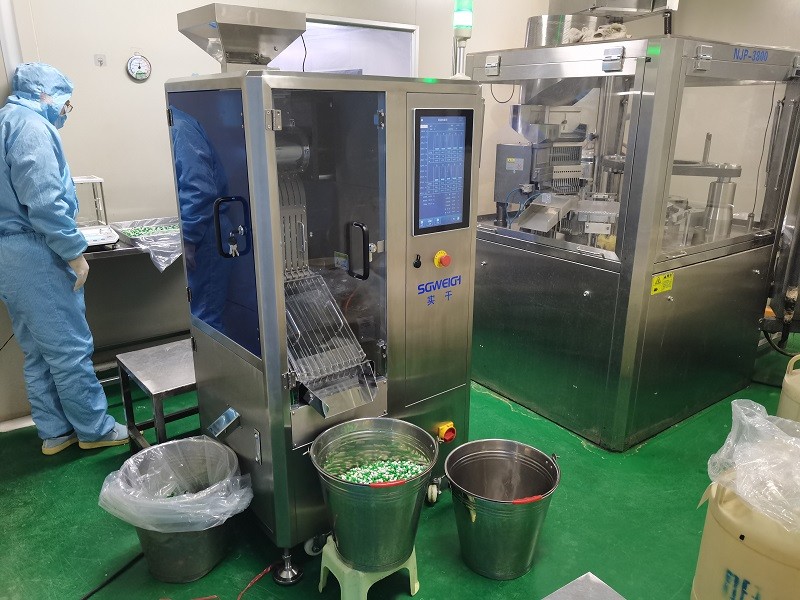

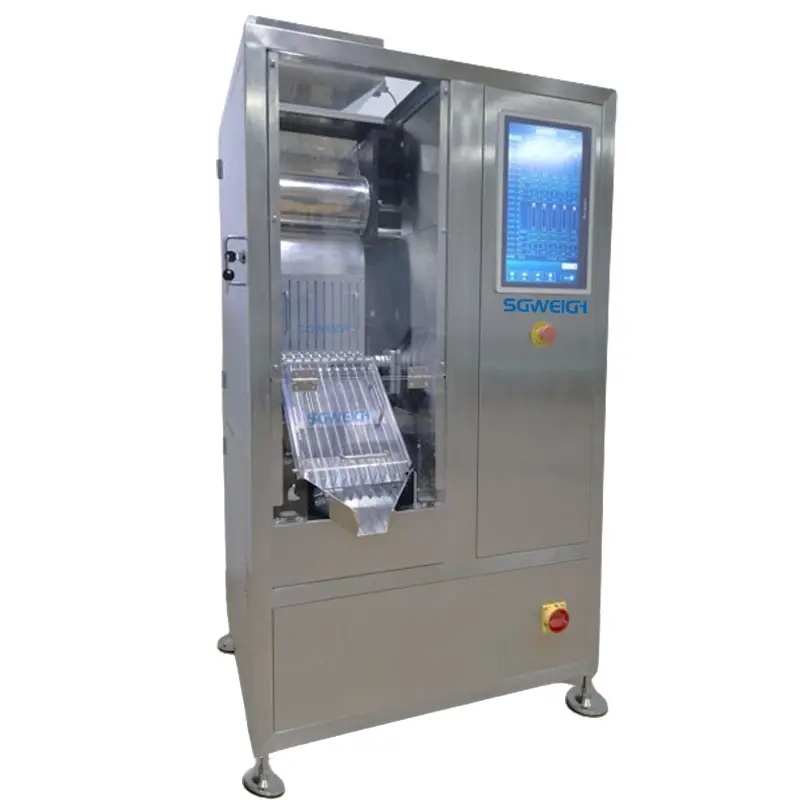

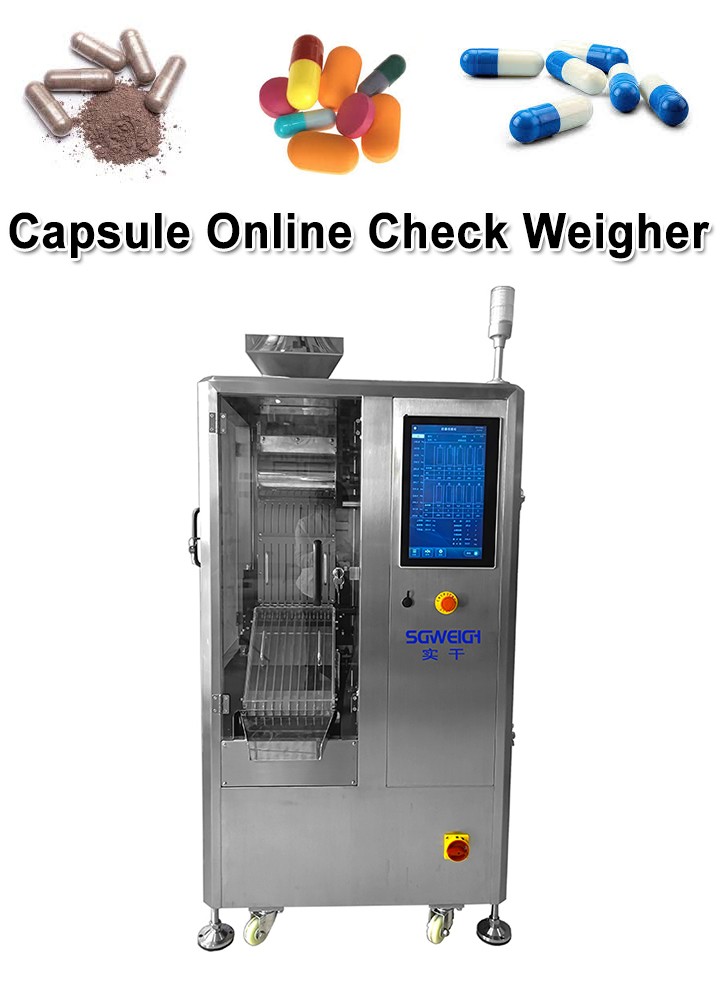

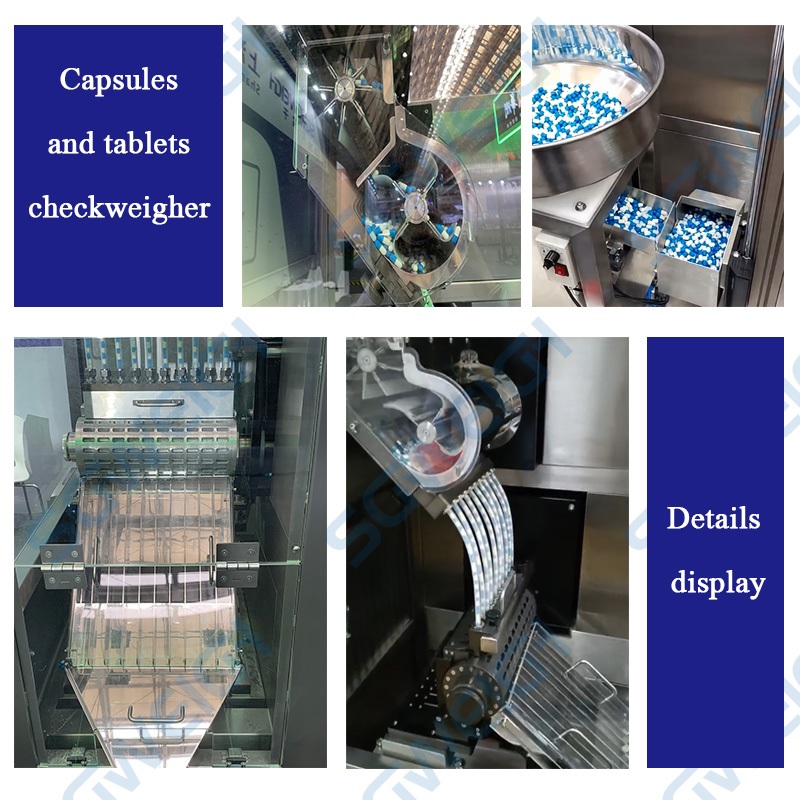

Pharmaceutical Checkweigher is a precision weighing and inspection system designed to ensure that every tablet, capsule in a production line meets strict weight requirements.Tablets and Capsules Weight Checkwe is widely used in pharmaceutical and nutraceutical industries where accuracy, compliance, and product safety are critical.

■ Tech Specifications

Type:SG-JN10/SG-JN20/SG-JN3O

Weighing scope:5-2000mg

Display scale:0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability:100000 PCS/HR/200000 PCS/HR/300000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)

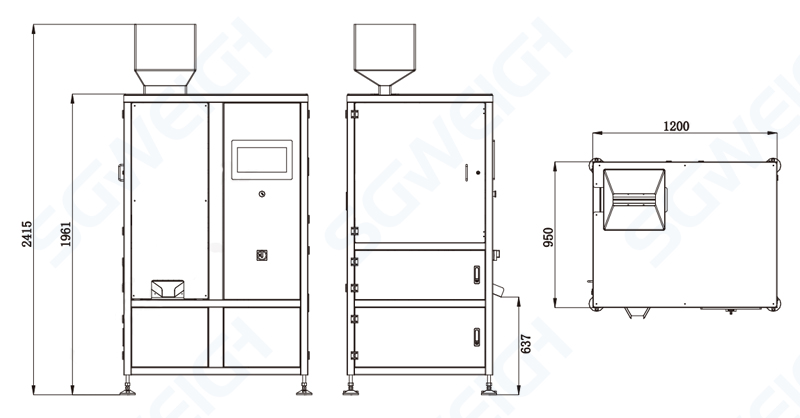

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

■ Main Features

1.High Precision: Can detect microgram- to milligram-level deviations (±1 mg or better depending on product and speed).

2.High Speed: Supports up to thousands of pieces per minute without compromising accuracy.

3.Automatic Rejection: The underweight, overweight or empty capsules are rejected by the flip mechanism.

4.Compact Design: Can be integrated into tablet presses, capsule fillers, blister packaging, or bottle lines.

5.Compliance: Meets FDA, GMP, and 21 CFR Part 11 standards for data integrity.

6.Data Recording: Stores weight statistics, batch reports, and provides traceability for audits.

7.Clean Design: Stainless steel construction, easy to sanitize, suitable for cleanroom environments.

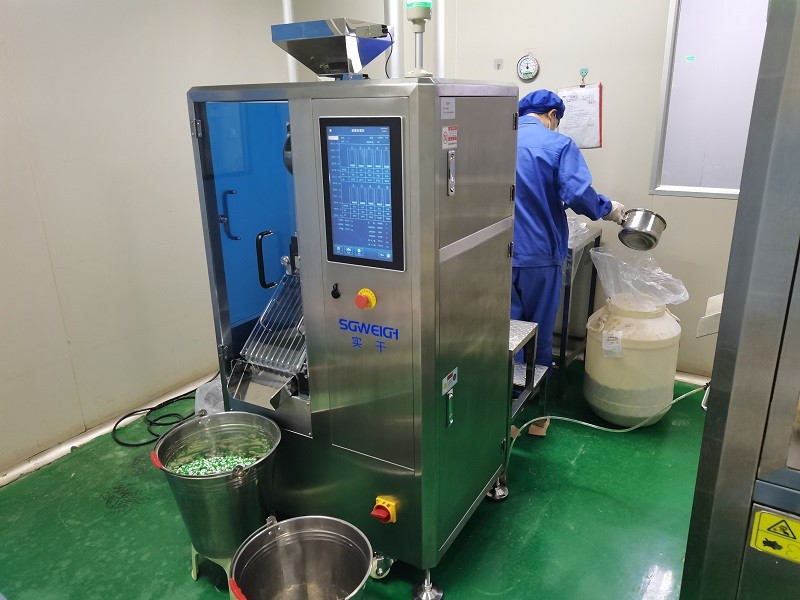

■ Application

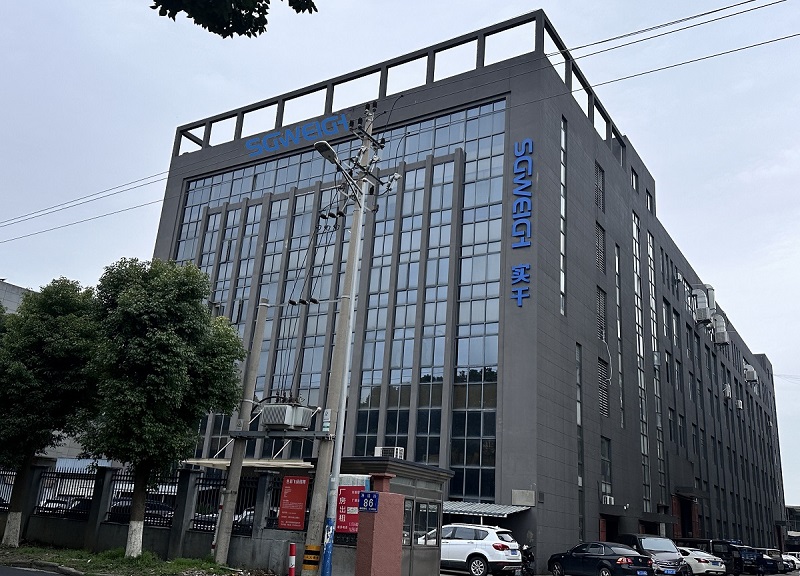

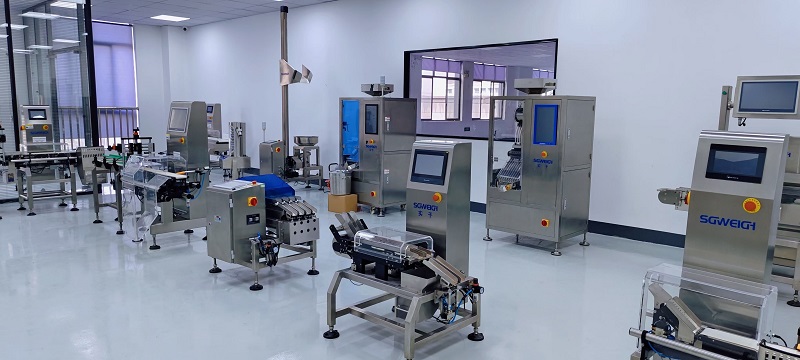

■ Company

■ Customers

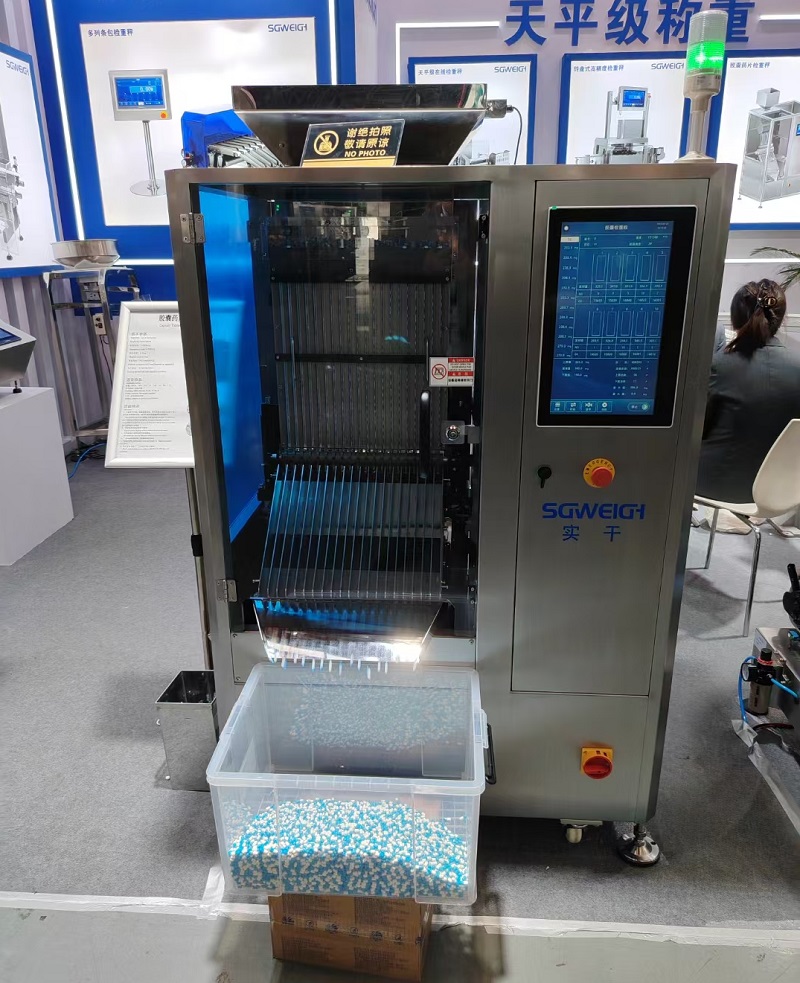

■ Exhibitions

■ Package & Shipping

Inner use the plastic wrapping ,out package will use stronger wooden cases.

Our standard package process:

1) Dust & Cleaning

2) Lubricate Drive Parts

3) Divide Machine Into Modules

4) Wrap Modules With Plastic Film

5) Packing Modules into Plywood Cases

6) Mark Shipping Mark In The Cases

If any special requirements, we will pack it as requested.
