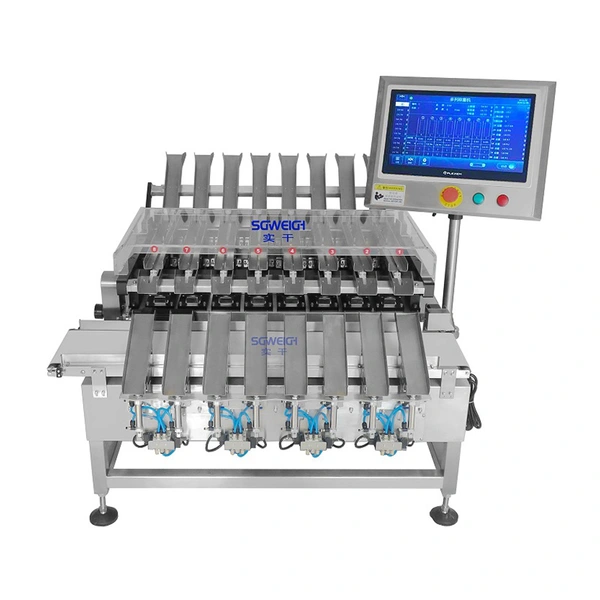

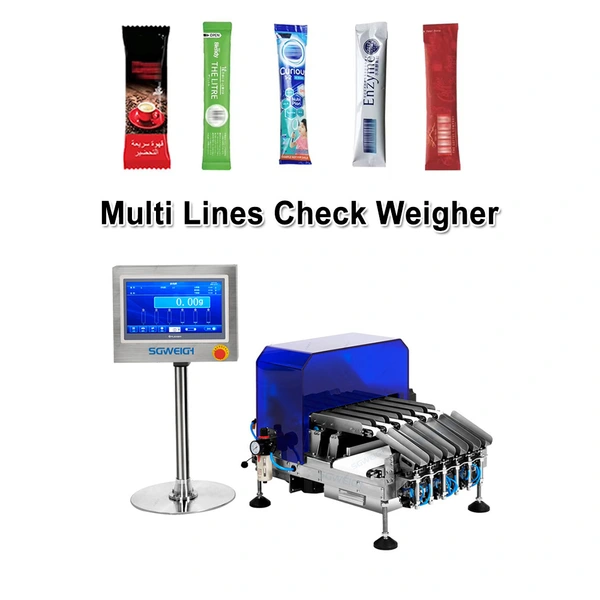

Multi-lane Checkweighers are ideal for nearly any production line application that requires high-speed, accurate weighing of small packaged products.Stick Packs Multi line Checkweigher Scales can receive product directly from multi-lane packaging machines without the need for additional discrete conveyors.This ensures correct product transfer and reduces losses due to misorientation.
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Windshield:Thick acrylic (to avoid airflow interference)
1. Data from multiple channels can be counted independently or comprehensively;
2. Checkweighing parameters can be set independently or uniformly;

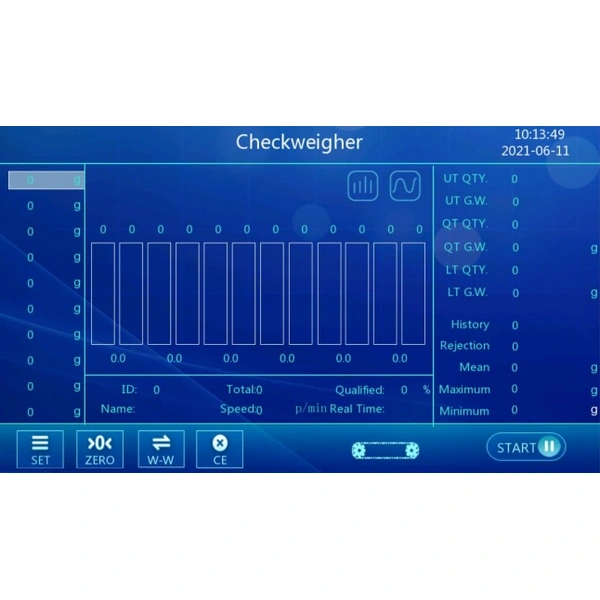

3. One control module and display screen;
4. It has the accuracy and speed of multiple single-row checkweighers;
5. It can be monitored remotely in real time;
6. It saves space and is low in cost.
Q1. Are you a manufacturer or a trader?
A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team.
Q2. How many types of checkweighers do you have?
A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company's checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.
Q3. What factors should be considered when choosing a checkweigher?
What is the product you want to weigh?
How many grams/kg of the product?
What is the size of the product?
What are the speed requirements?
Accuracy requirements?
Based on the above information, our sales will recommend the most suitable checkweigher for you.
Q4. What kind of shipping methods can you provide?
A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.
Q5. Do you accept customer logos and customizations?
A: We accept all kinds of customization and logos for all products.
Q6. How is the product packaging?Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
