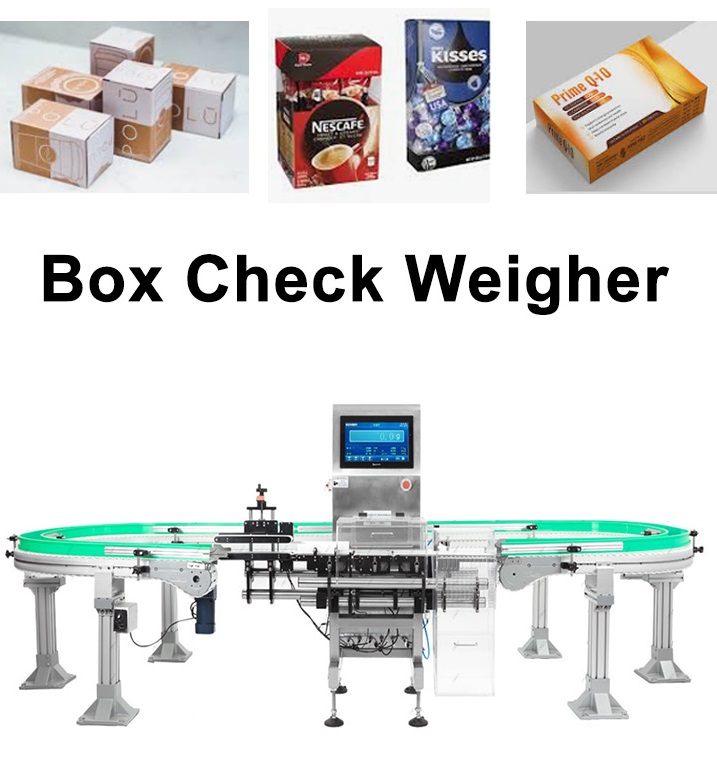

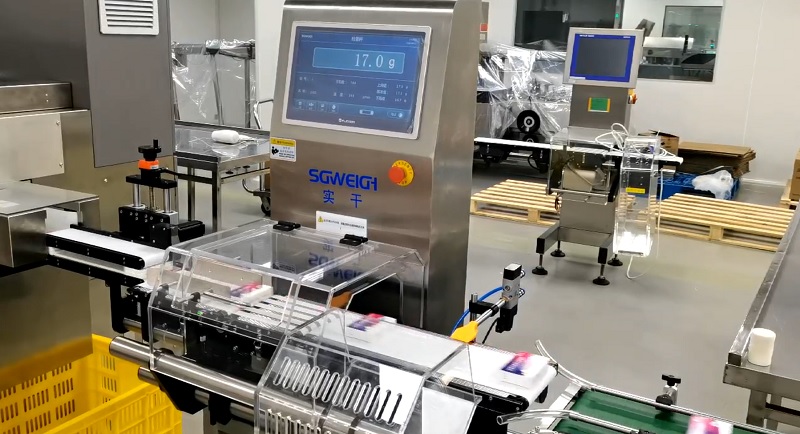

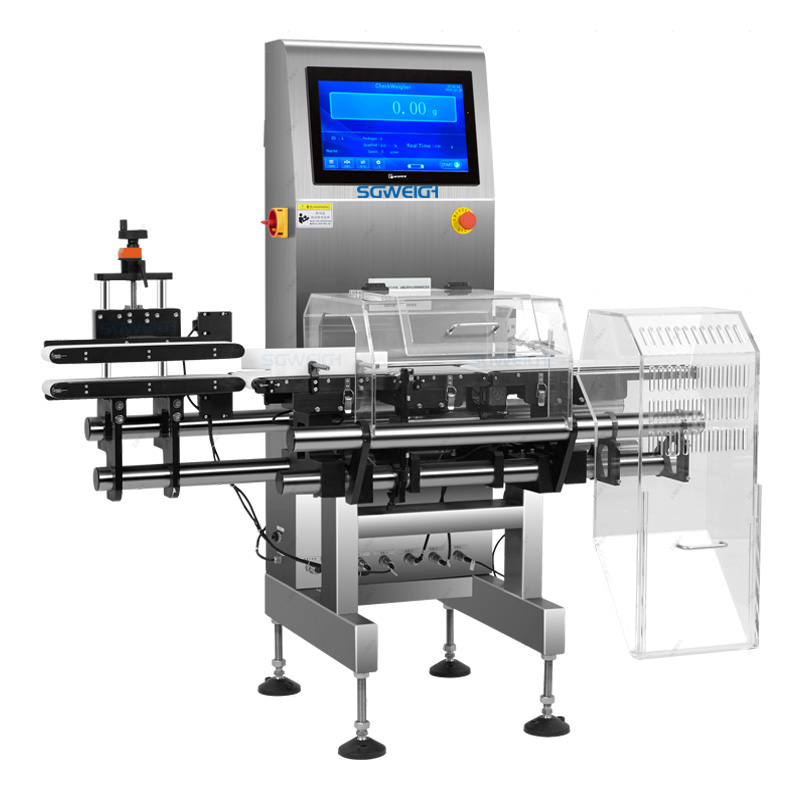

High Speed Medicine Packaging Boxes Checkweigher is a critical quality control device in pharmaceutical manufacturing, ensuring each box meets precise weight requirements to comply with regulatory standards (e.g., FDA, GMP) and avoid under/over-filling.
Type:SG-150HH
Weighing scope:3-500g

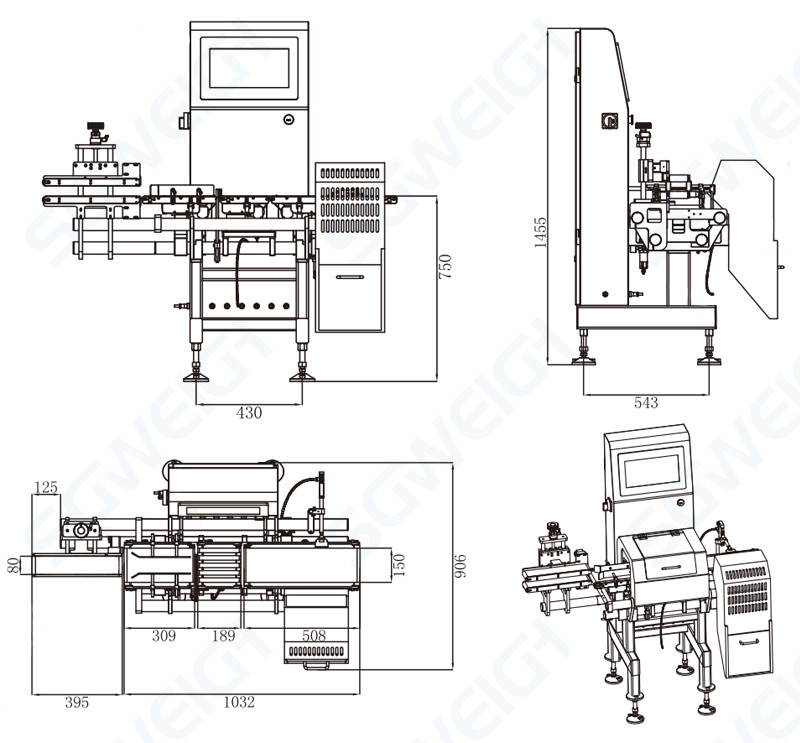

Restriction of product:L:100 W:150 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:300pcs/min
Belt width:150mm
Belt Speed:0-110m/min
Weight of machine:about 140kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
1.High Precision
Measures weight with accuracy up to ±0.1g (depend on product).
Detects missing pills,tablets,or overpacking, missing instructions in boxes.
2.Hygienic Design
Stainless steel or anti-corrosive materials for easy cleaning.
IP65 protection against dust/liquids.
3.Speed & Throughput
Handles 100–400 packages/minute (depends on box size/conveyor speed).
Rejects outliers via pneumatic arms or diverter belts.
4.Integration with Packaging Lines
Connects to PLC, SCADA, or MES systems for real-time monitoring.
Syncs with labeling/capping machines for closed-loop correction.
OEM/ODM Checkweigher for Carton Lines
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
