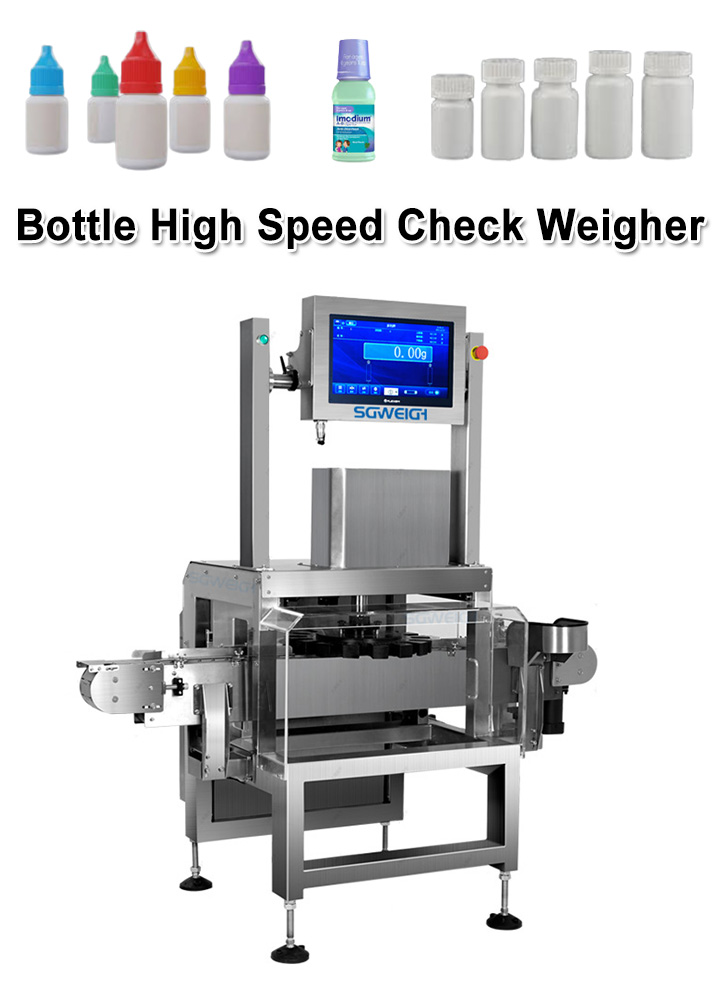

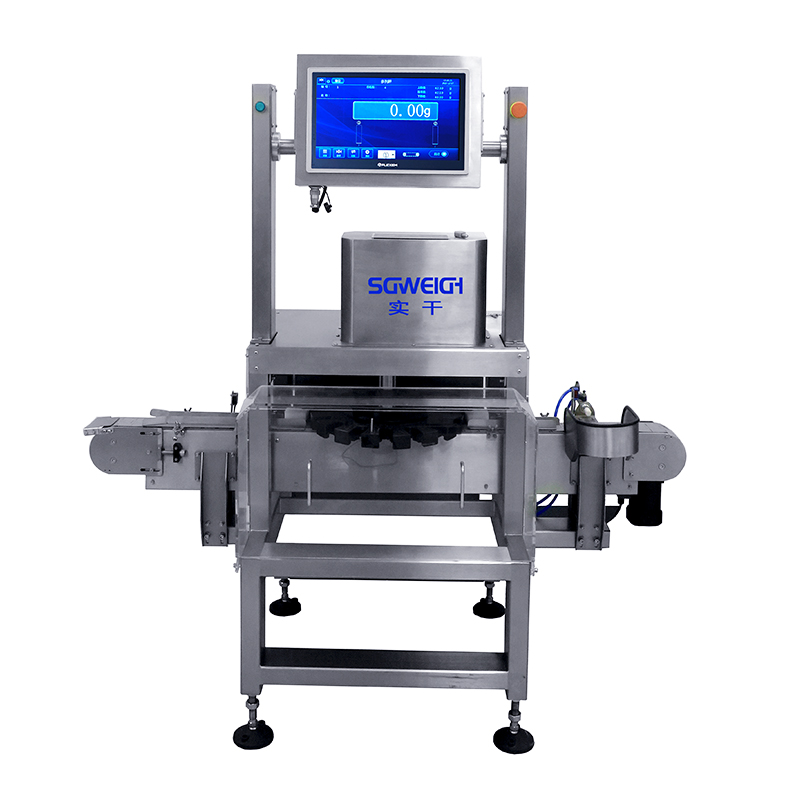

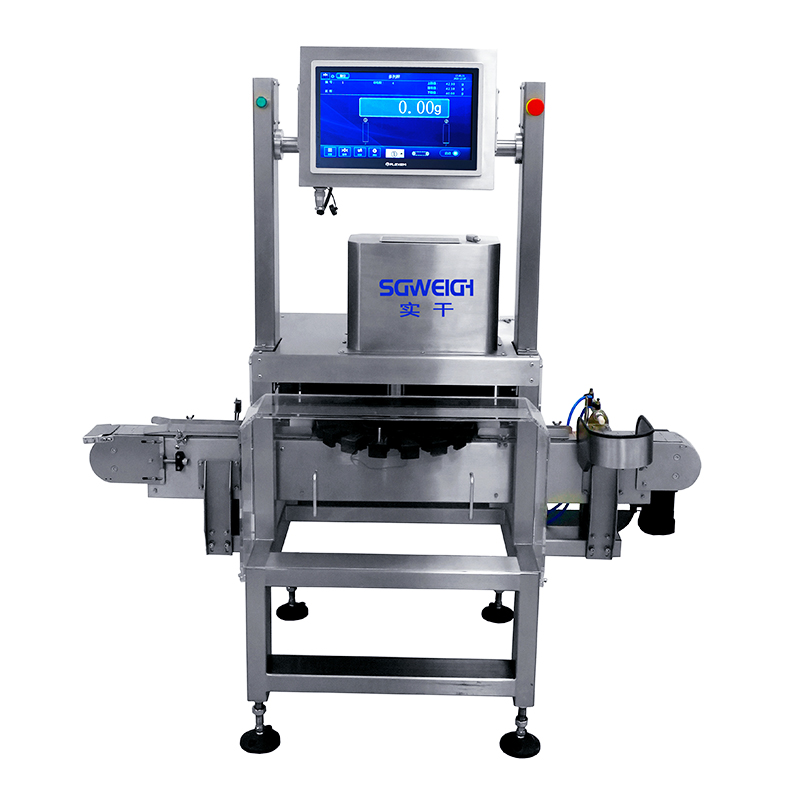

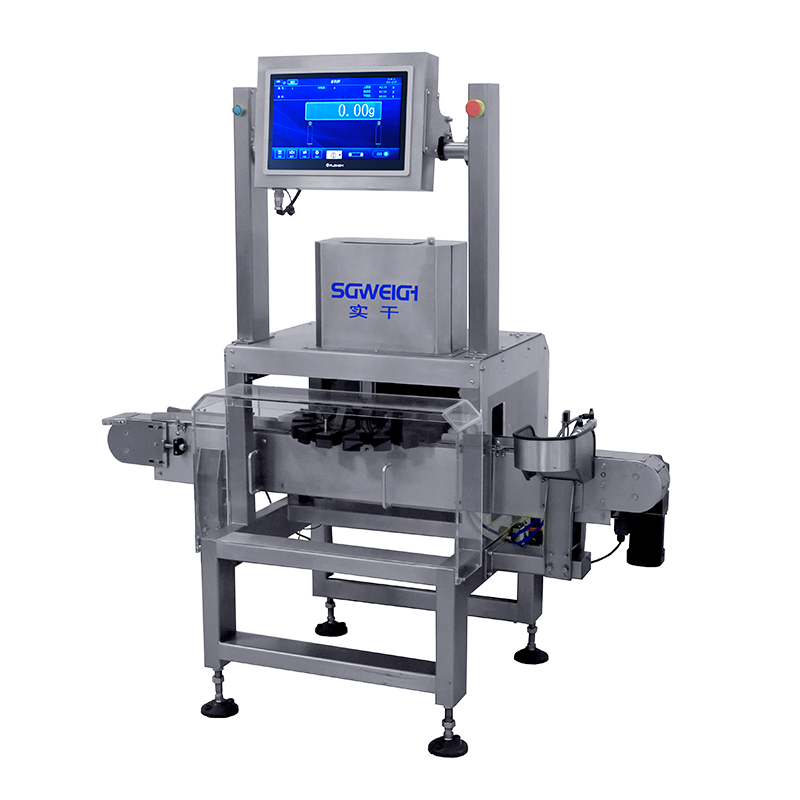

High-Speed Inline Rotary Checkweigher for Small Diameter Bottles - Vials/Ampoules/Eye Drops

The High-Speed Inline Rotary Checkweigher is a high-precision automatic weighing equipment specially used in the pharmaceutical industry (especially vaccine production).

Description

■ Product Introduction

The High-Speed Inline Rotary Checkweigher is a high-precision automatic weighing equipment specially used in the pharmaceutical industry (especially vaccine production).Checkweigher for Small Diameter Bottle is mainly used to detect whether the filling volume of vaccine bottles (such as vials, ampoules, etc.) meets the standards.

Rotary Checkweigher-Vials/Ampoules/Eye Drops

Inline Rotary Checkweigher


Inline Rotary Checkweigher

■ Tech Specifications

Type:SG-Z

Weighing scope:2-300g

Restrictions of product:Ф10-100 Н:20-200(mm)

Accuracy:±0.01g (Depends on products)

Division scale:0.01g

Belt Speed:0-50m/min

Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)

Chain plate width:100mm

Weight of machine:about 260Kg

Powder supply :AC220V 50HZ

Power:about 400W

Main material:SUS304

Inline Rotary Checkweigher


Inline Rotary Checkweigher



■ Main Features

1. High-precision weighing

Adopting high-sensitivity weighing sensor, the accuracy can reach ±0.01g to ensure the accuracy of vaccine filling volume.

Applicable to vaccine bottles of different specifications (such as 1ml, 2ml, 5ml, etc.).

2. Automated sorting

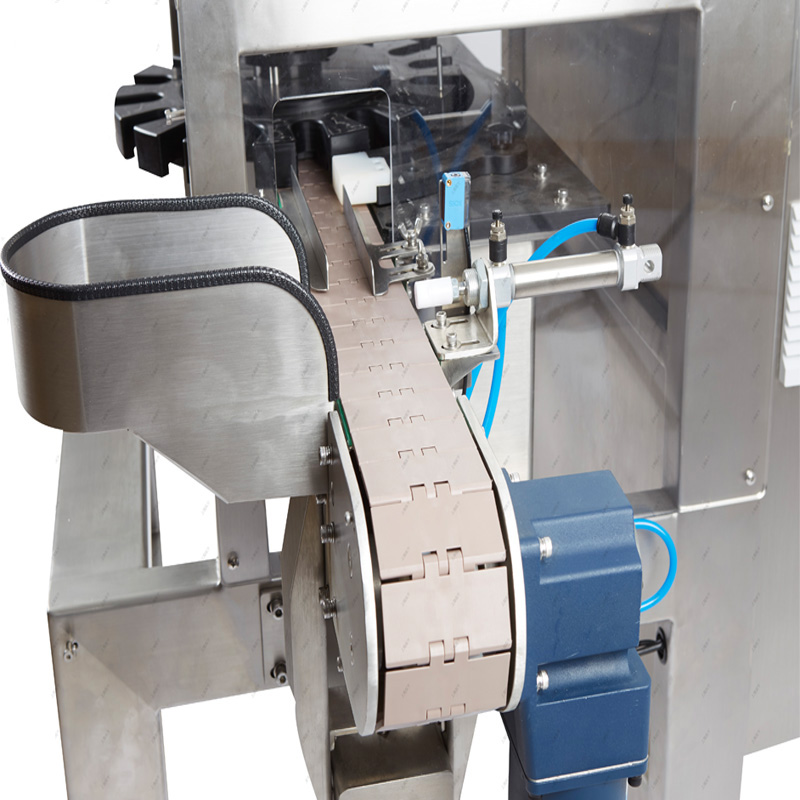

Automatically identify overweight, underweight or qualified products, and separate unqualified products through rejection mechanisms (such as air blowing, robotic arms).

3. Turntable design

The rotating workbench realizes continuous feeding, weighing, and sorting, improving detection efficiency (such as 60-250 bottles/minute).

The workstation can be customized (such as bottle feeding, weighing, rejection, bottle output, etc.).

Inline Rotary Checkweigher


Inline Rotary Checkweigher

■ Application

Vaccine production line: online weight detection after filling.

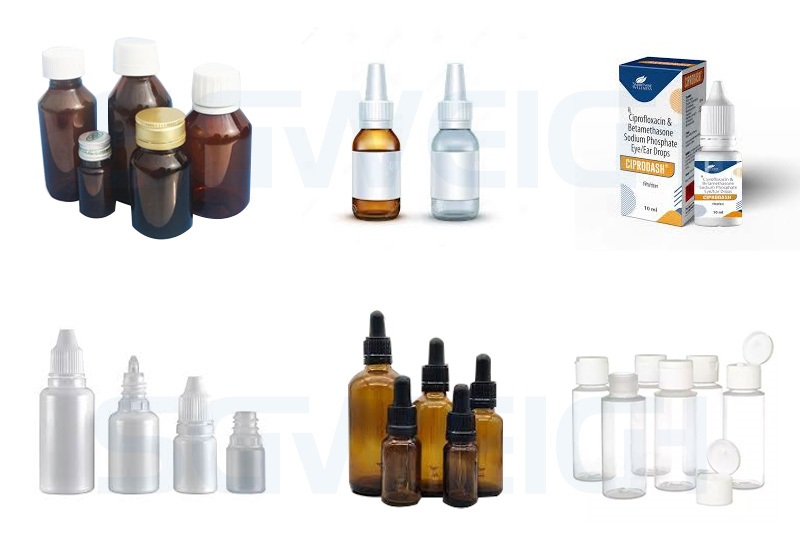

Other drugs: eye drops, ear drops, injections, freeze-dried powder injections and other liquid/powder filling control.

Quality control: full sampling inspection before batch release.

Checkweigher for small and medium sized cylindrical packages like bottles, jars and cans.


■ Company




■ Customers

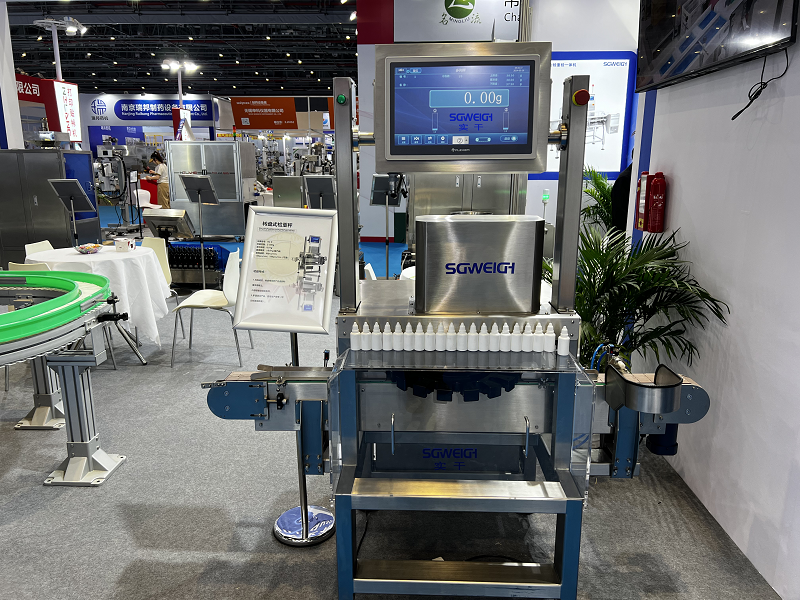

■ Exhibitions

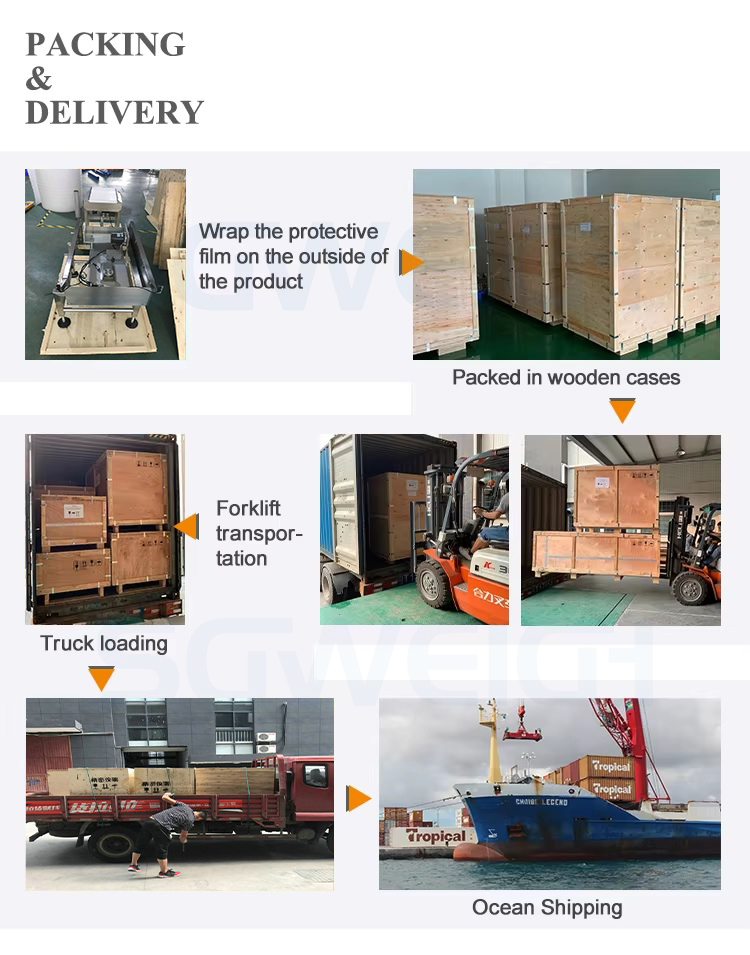

■ Package & Shipping

Inner use the plastic wrapping ,out package will use stronger wooden cases.

Our standard package process:

1) Dust & Cleaning

2) Lubricate Drive Parts

3) Divide Machine Into Modules

4) Wrap Modules With Plastic Film

5) Packing Modules into Plywood Cases

6) Mark Shipping Mark In The Cases

If any special requirements, we will pack it as requested.



■ FAQ

Q1. Are you a manufacturer or a trader?

A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team and factory.


Q2. How many types of checkweighers do you have?

A:Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company's checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.


Q3. What factors should be considered when choosing a checkweigher?

What is the product you want to weigh?

How many grams/kg of the product?

What is the size of the product?

What are the speed requirements?

Accuracy requirements?

Based on the above information, our sales will recommend the most suitable checkweigher for you.


Q4. How much does the checkweigher cost?

A:There is no quick,easy answer to this question.Our machines are customer-specific, so "standard pricing" is not usually available.Pricing depends largely on your unique needs,such as the product you want to weigh, the size of the product,the speed you want to achieve,or the complexity of the process.Contact us to get a specific quote.


Q5. What kind of shipping methods can you provide?

A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.


Q6. Do you accept customer logos and customizations?

A: We accept all kinds of customization and logos for all products.


Q7. How is the product packaging?Is it easy to be damaged during transportation?

A: No. We use wooden boxes, which are very safe.
