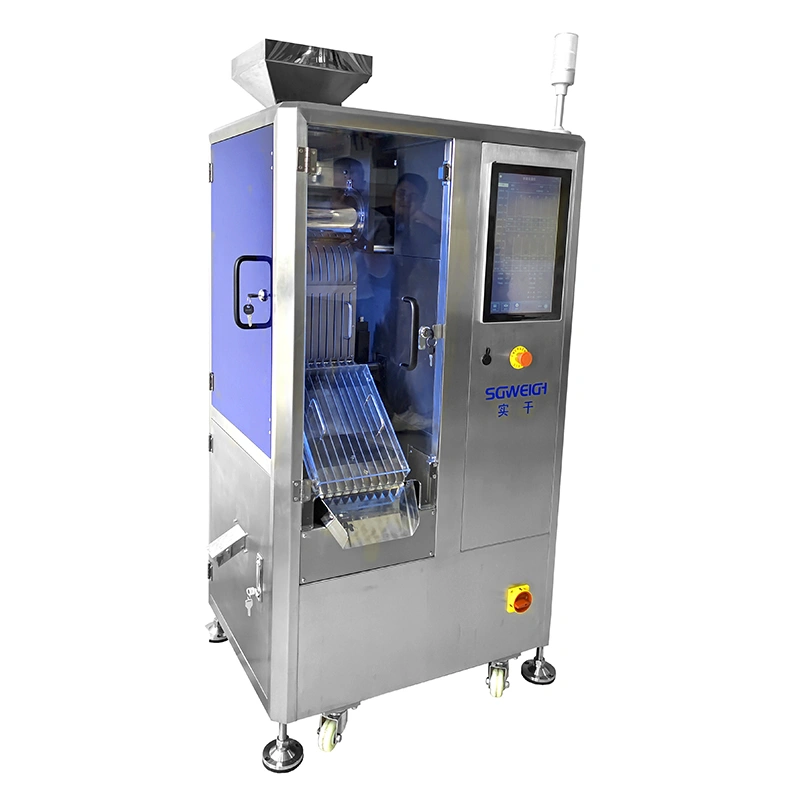

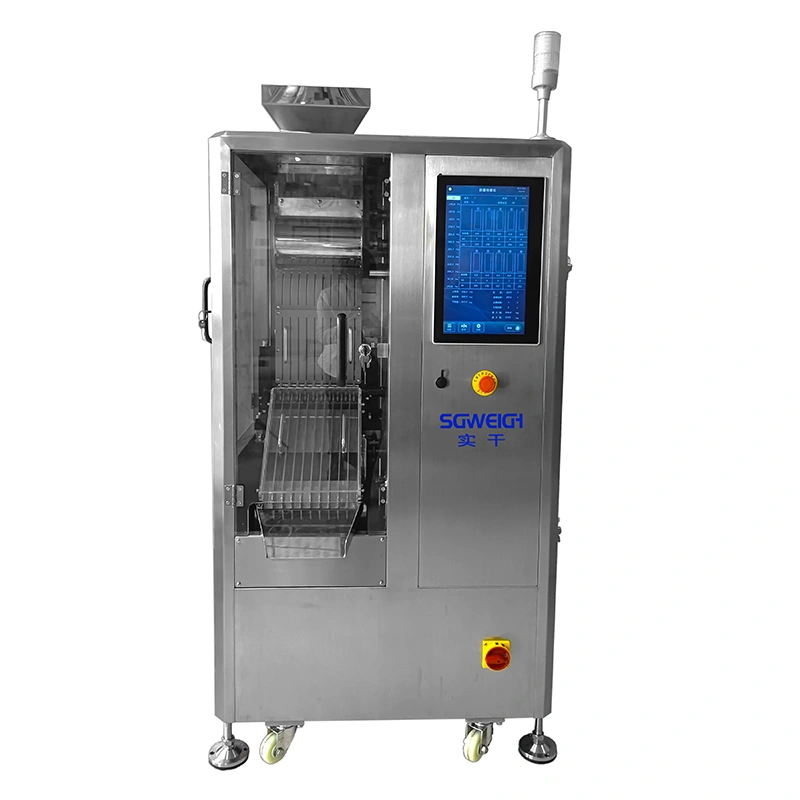

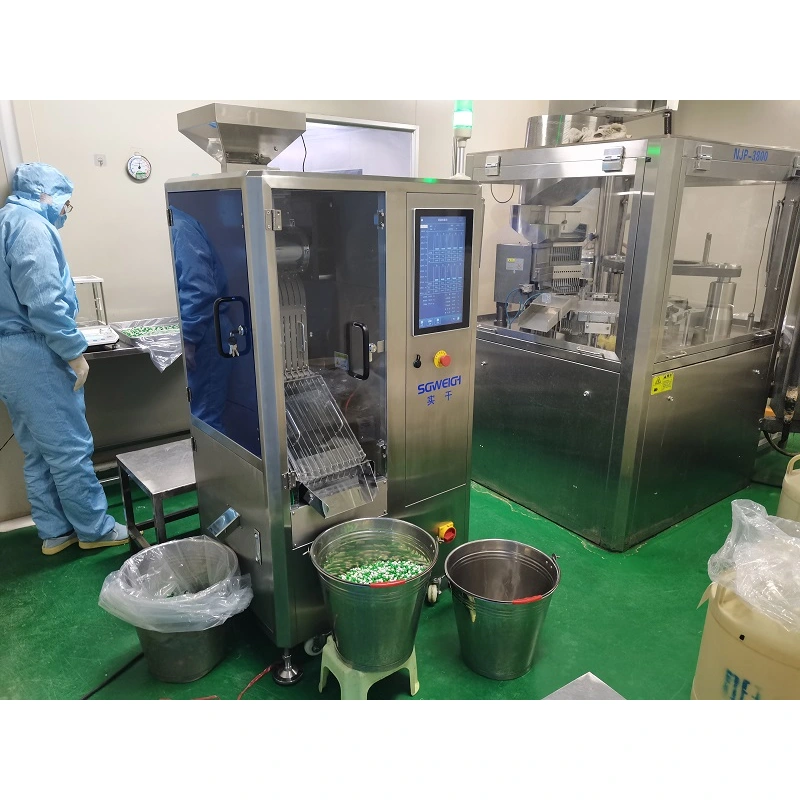

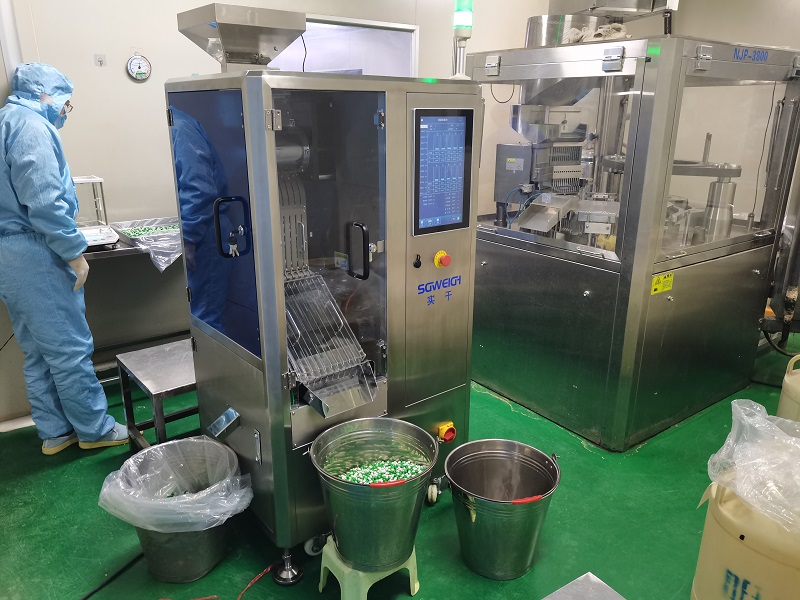

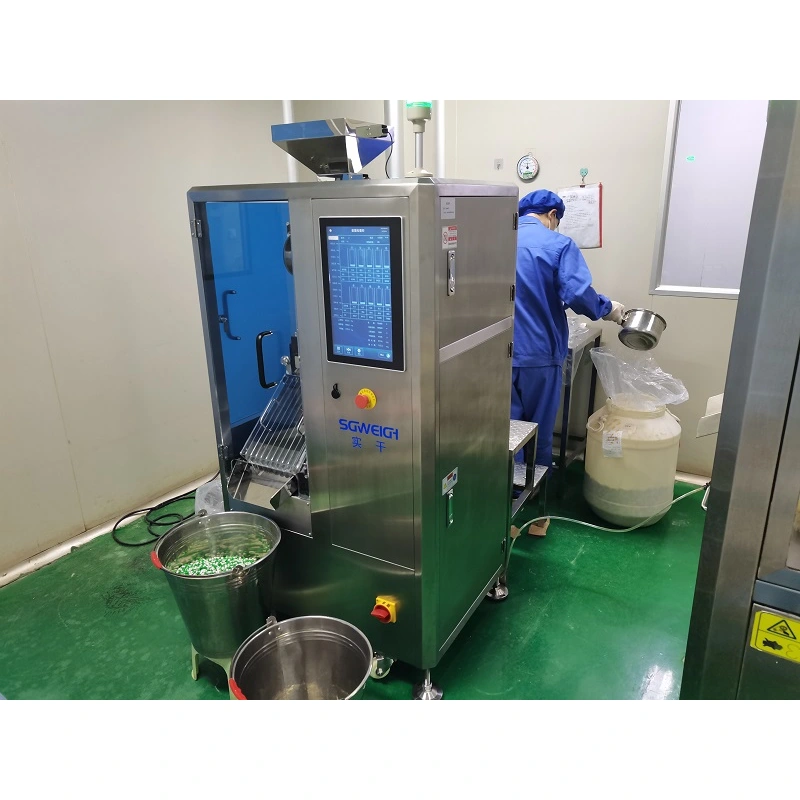

Hard Gelatin Capsule Pharma Checkweigher is a specialized application of dynamic checkweighing technology in the pharmaceutical industry.Pharma Checkweigher is installed on the production line, after the capsule filling machine and before the packaging machine, to perform high-speed, automated weight measurement of each finished capsule. Based on preset weight limits, it automatically rejects any capsules that are underweight or overweight.
Max throughput (10 lanes)100000 capsules/h
Max throughput (20 lanes)200,000 capsules/h
Max throughput (30 lanes)300,000 capsules/h
Weigh range:2-2000 mg
Highest sorting accuracy:±0.5mg
Scale interval:0.1 mg
Weight of Machine :350kg/500kg/700kg
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
●100% Capsule Weighing with worlds highest -level precision and reliability
●Achieved high throughput of 100,000 capsules per hour with a small footprint.
●Industry’s highest weighing accuracy of +/-0.5mg.
●Reject of all out of specification capsule with reject confirmation sensor
●Meeting GMP standard and Validation requirements with 21 CFR Part 11 Compliance, Audit trail.
●Intuitive touch screen interface and easy to operate.
●Ethernet connectivity for real time remote data collection, User Authentication.
●Easy mold change for various product types.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q3.How much does Capsule Checkweigher cost?
There is no quick, easy answer to this question.Our machine is specific to the customer, so arriving at 'standard pricing' isn't usually practical. Pricing largely depends upon your unique needs, such as the products you want to detect, the size of the product,the speed you want to achieve,or the complexity of the process. Contact us to get a specific quote.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
