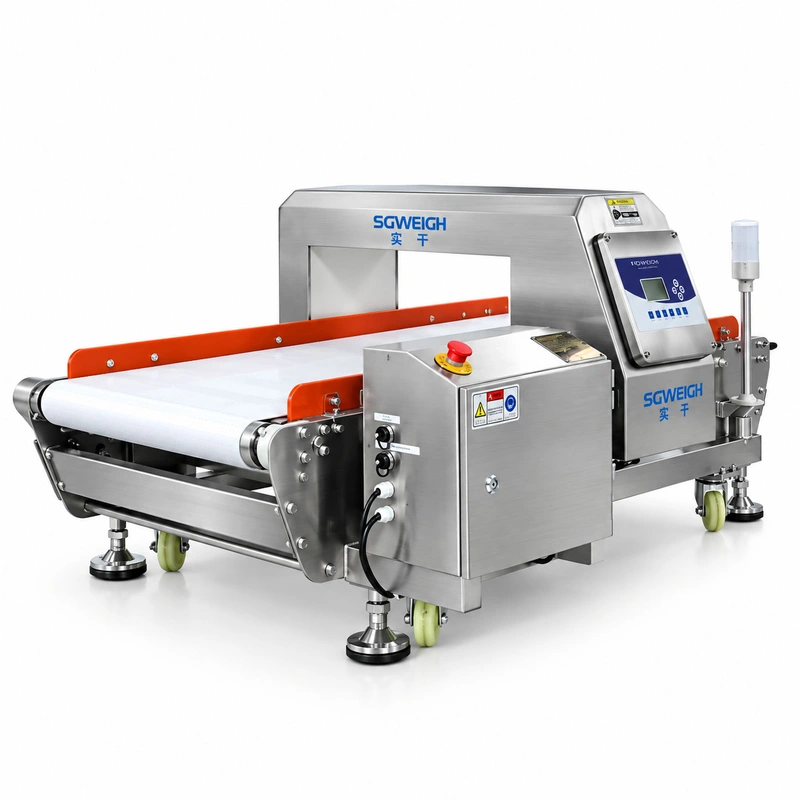

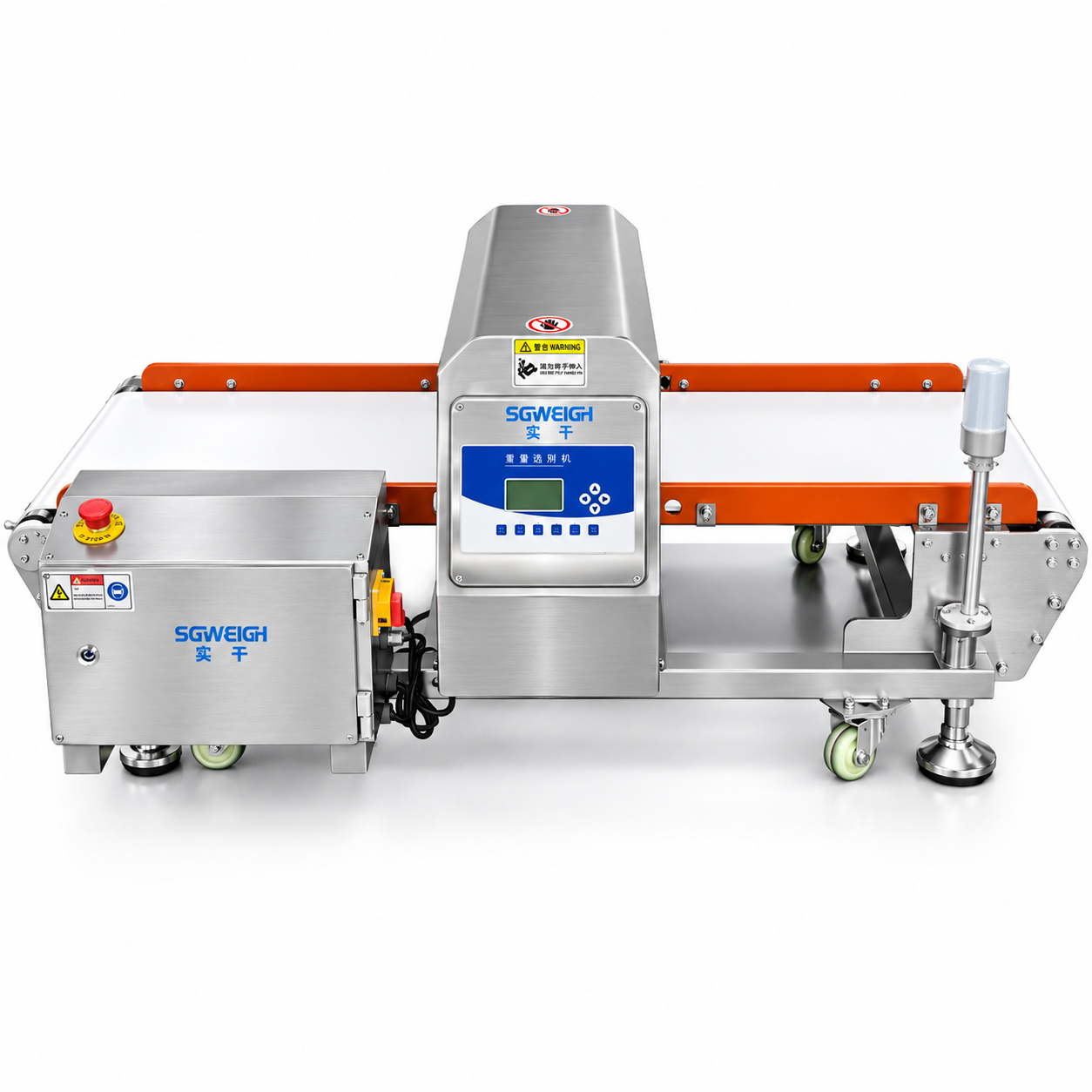

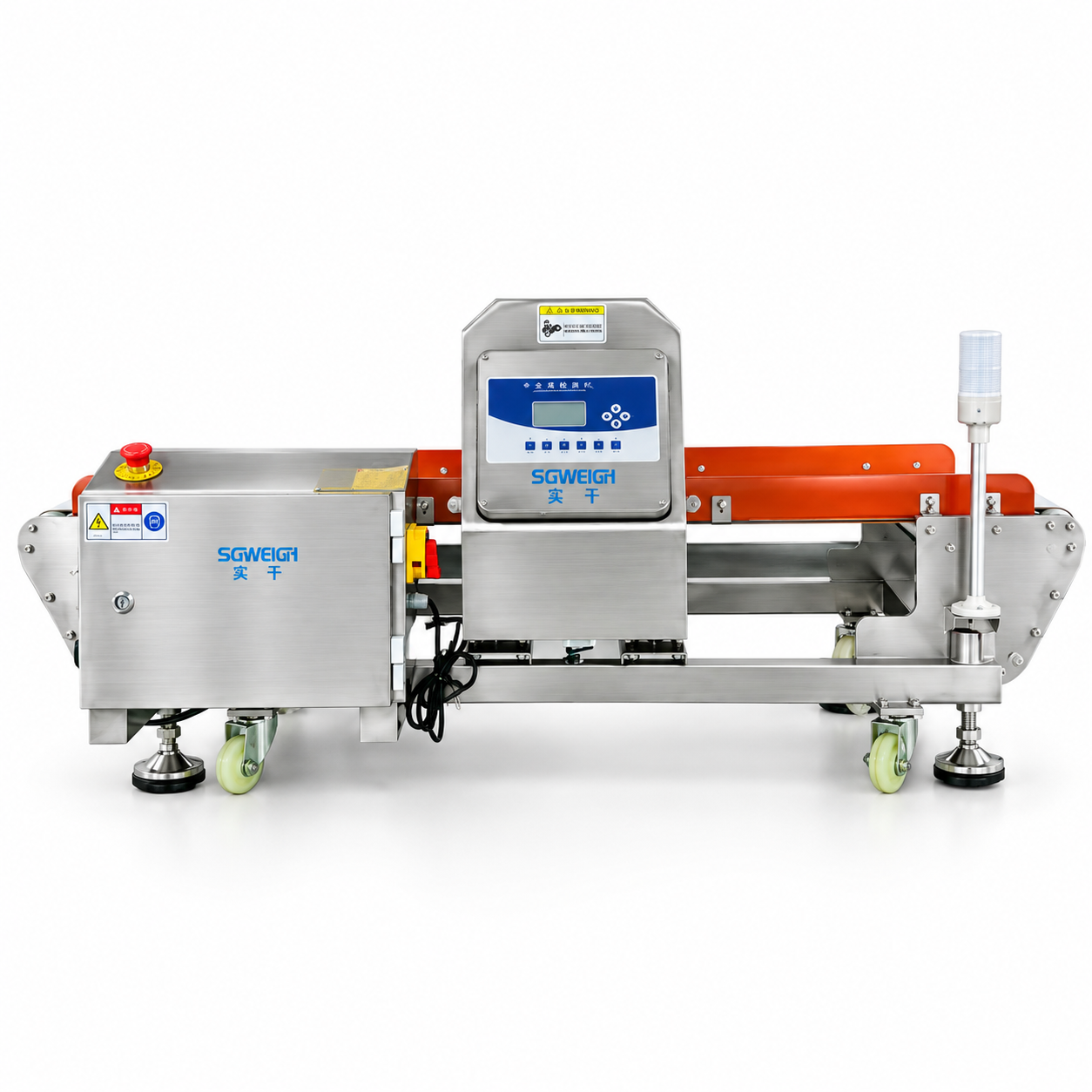

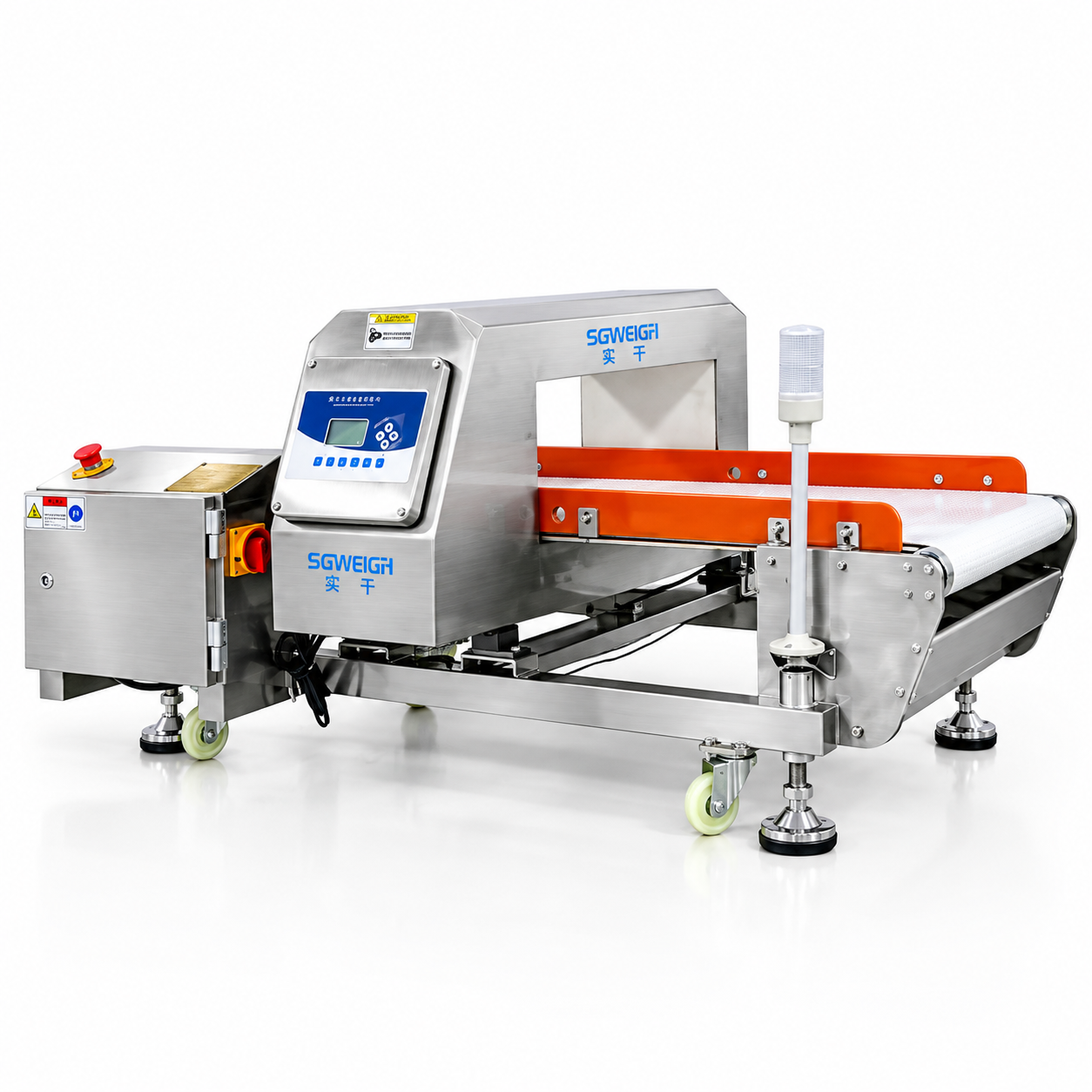

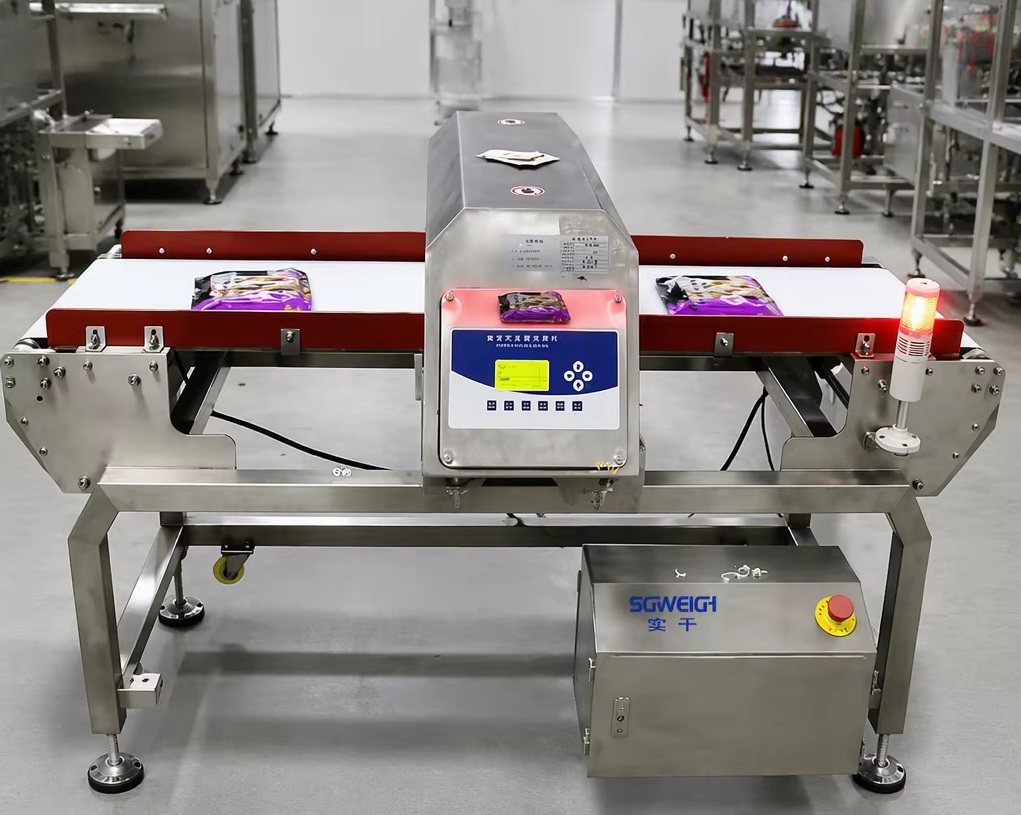

Frozen Food Online Metal Detector uses high-speed digital signal processing devices and intelligent algorithms to detect metals in frozen foods, meat, rice, pickled products and other foods. The use of high-speed digital signal processing devices and intelligent algorithms improves detection accuracy and stability.High Performance Sensitive Metal Detection Machine has high detection sensitivity for metal foreign matter mixed in products; it can easily detect common metal impurities mixed in products.Welcome to consult for quotation information !
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min

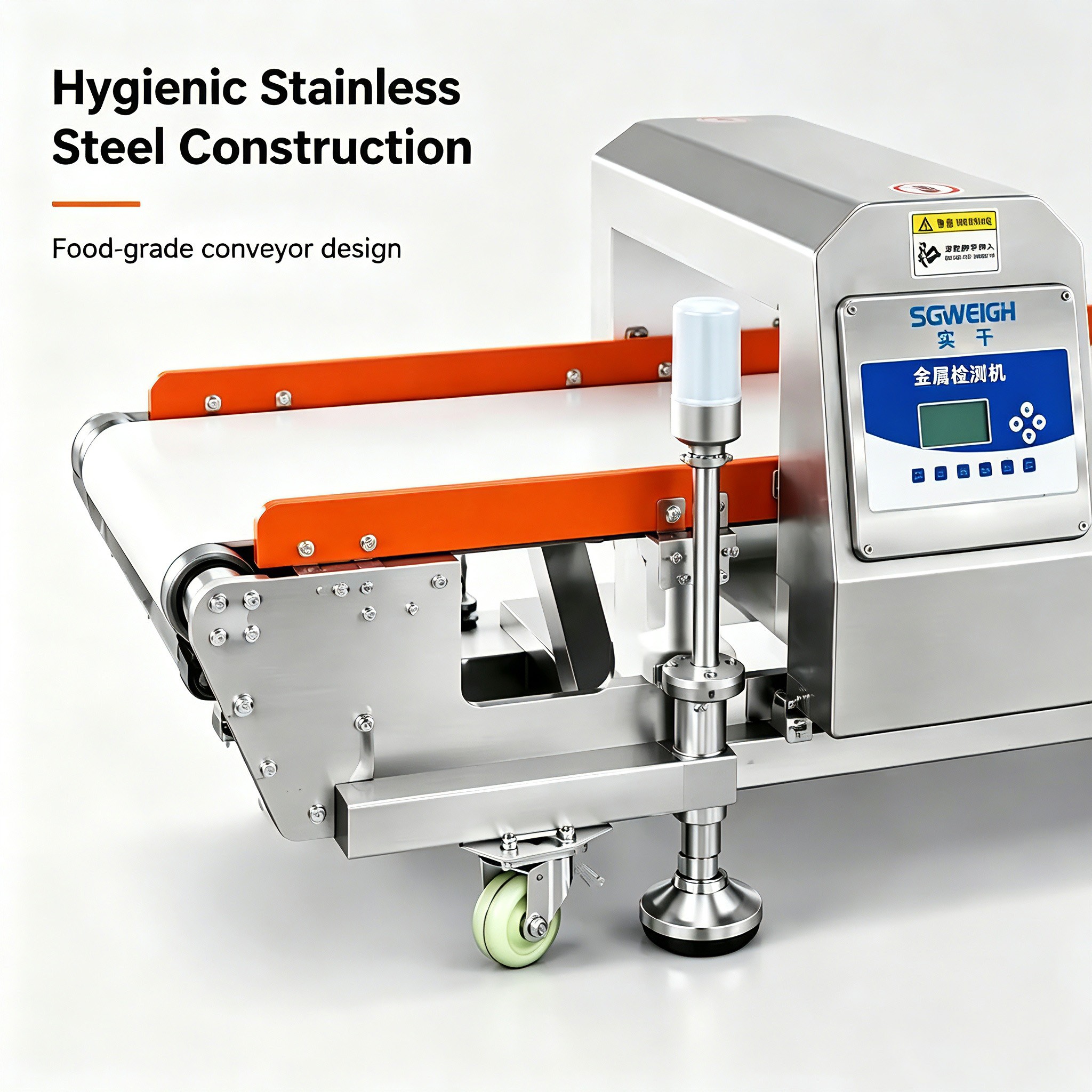

Conveyor belt material: food grade PU belt
Protection class: IP65

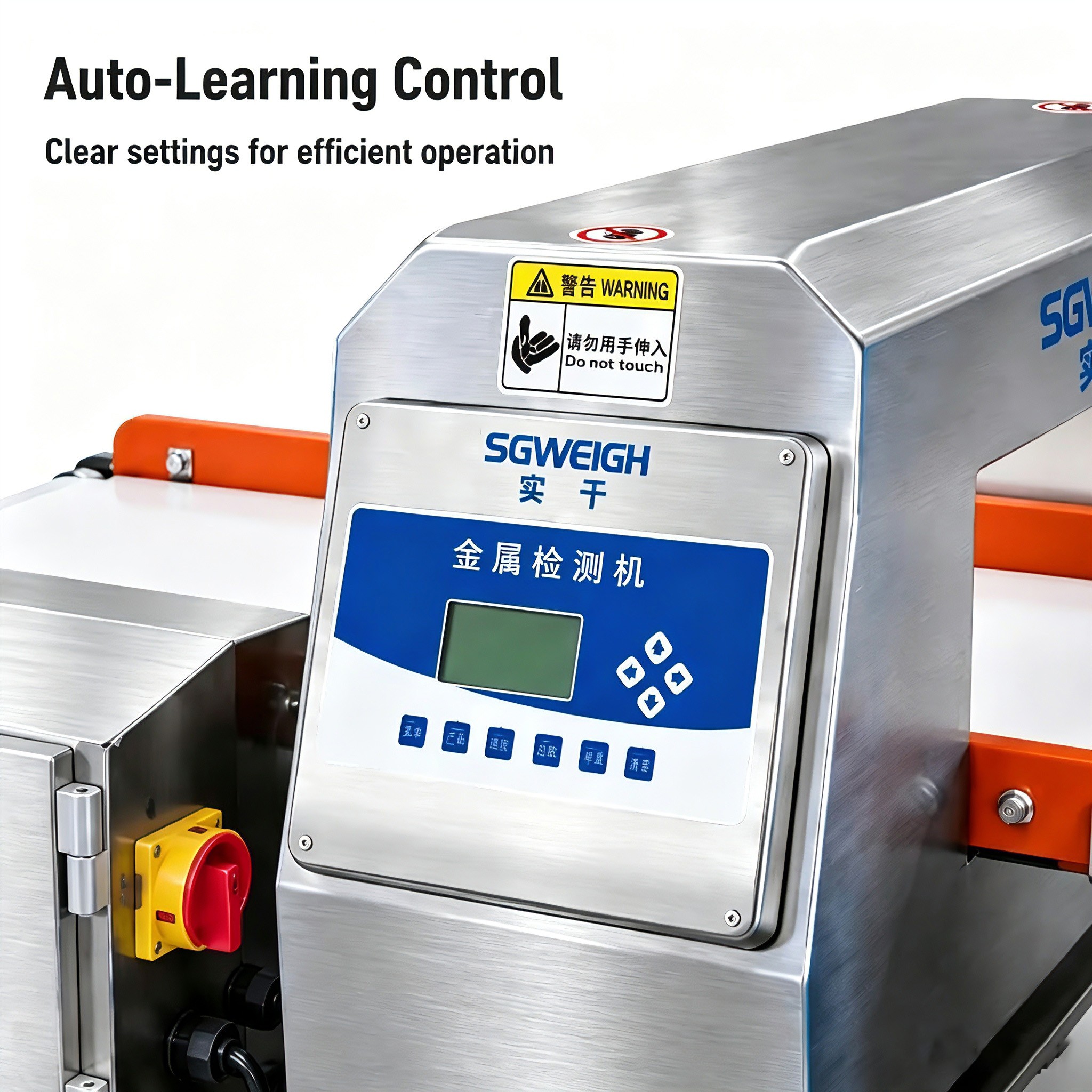

Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W

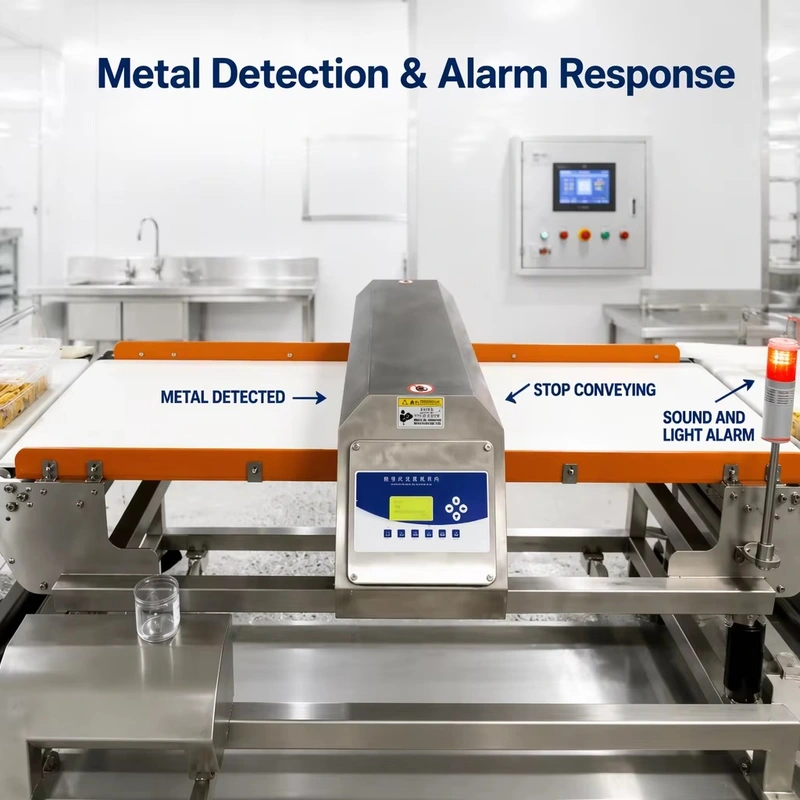

Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
· Detect all types of metal contaminants, including ferrous, non-ferrous, and extremely difficult-to-detect non-magnetic stainless steels.
· Phase adjustment technology effectively suppresses product signals; high-speed digital signal processing technology and intelligent algorithms.
· Dual-frequency detection takes into account the detection sensitivity of dry/wet products.
· Stable and reliable, advanced automatic compensation technology ensures long-term stable performance.
· Customizable, in addition to standard specifications, it can be customized according to different user requirements.
· Efficient operation: automatic settings, quick product switching, no product handling, historical data, multi-language operating system, etc.

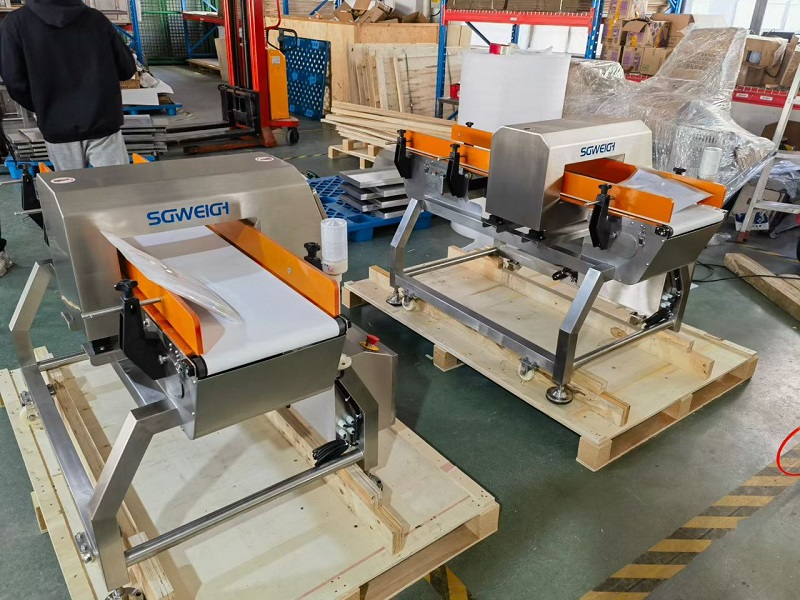

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
