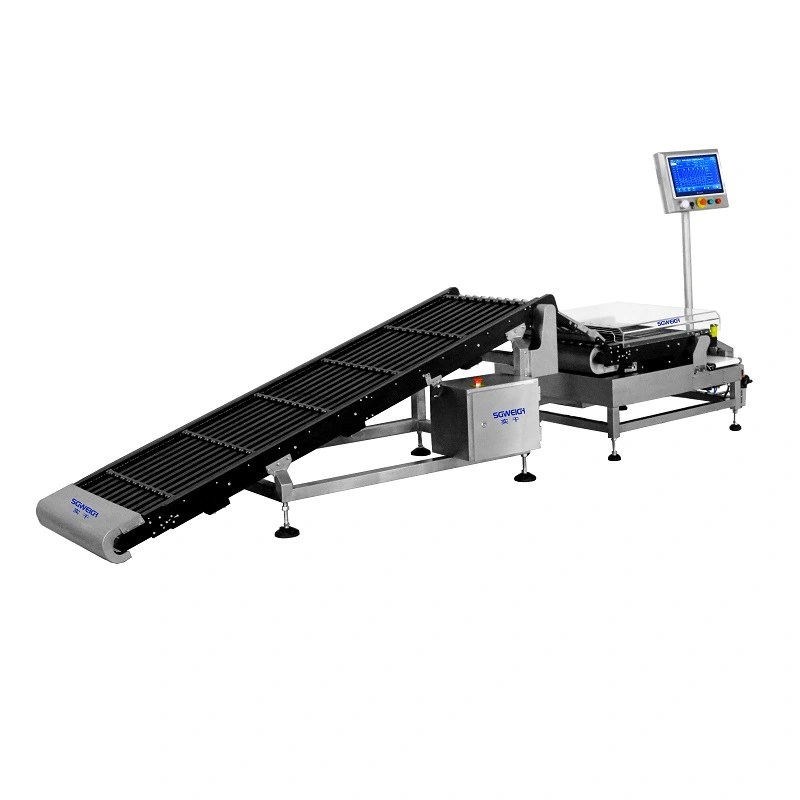

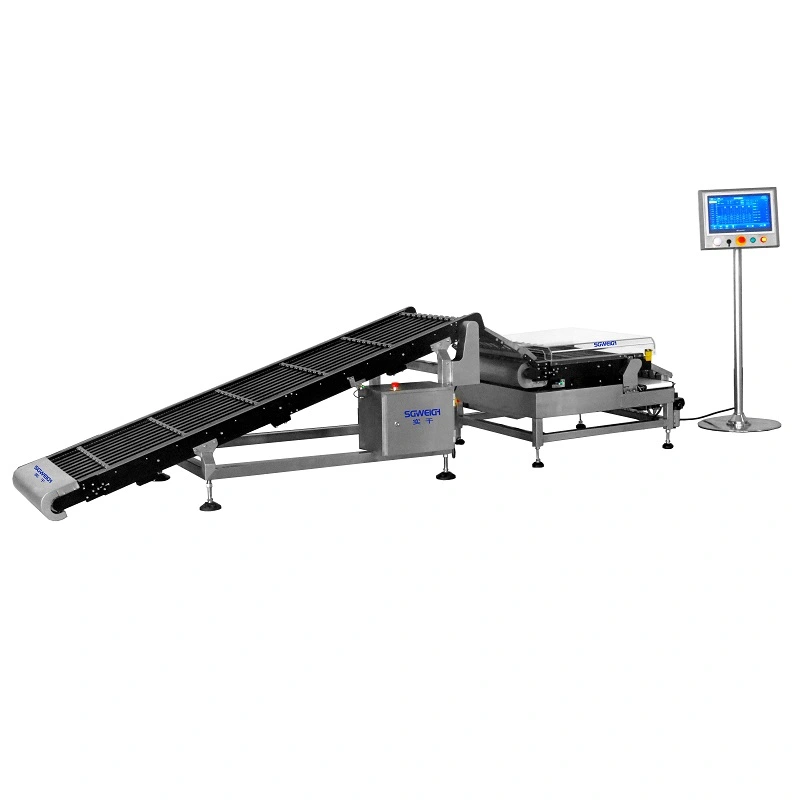

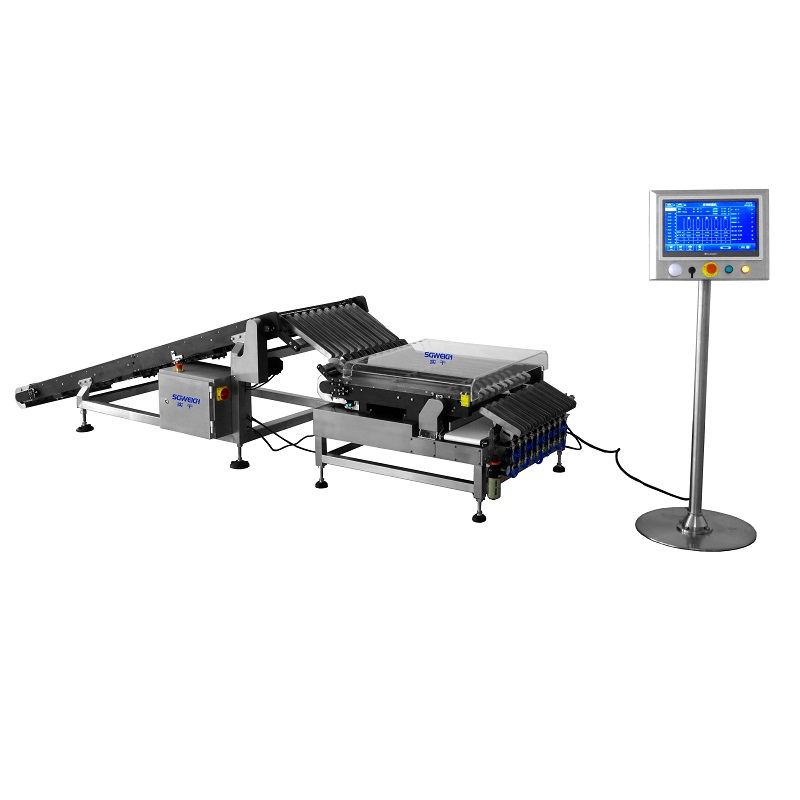

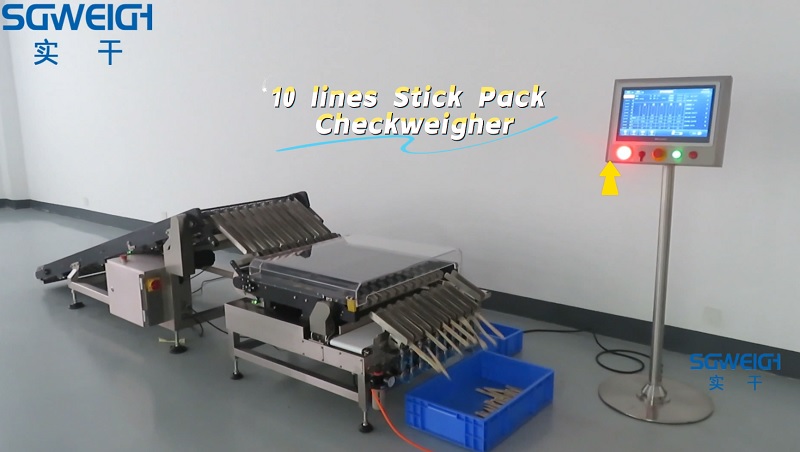

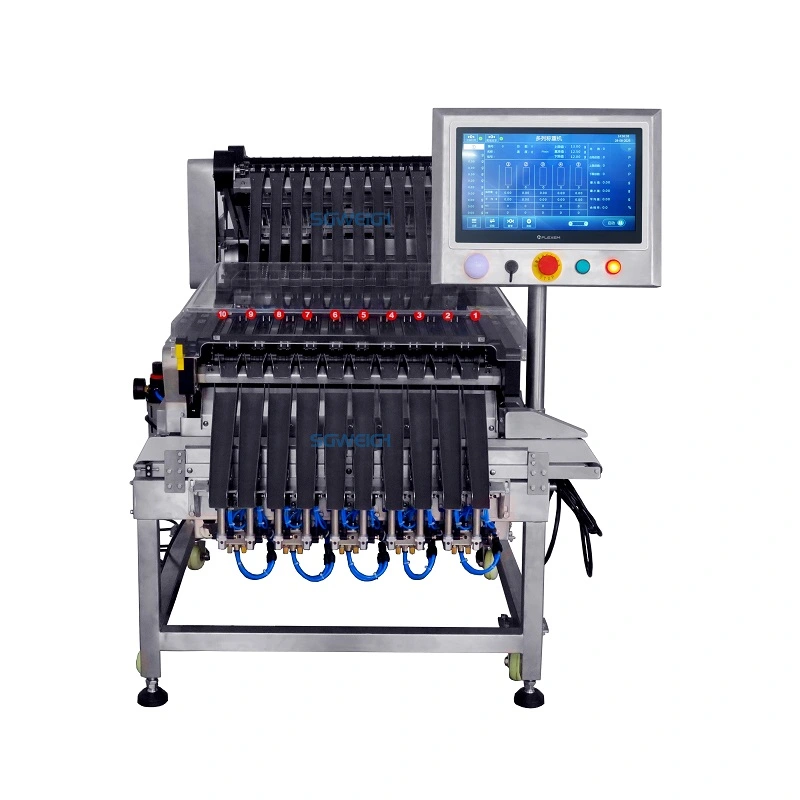

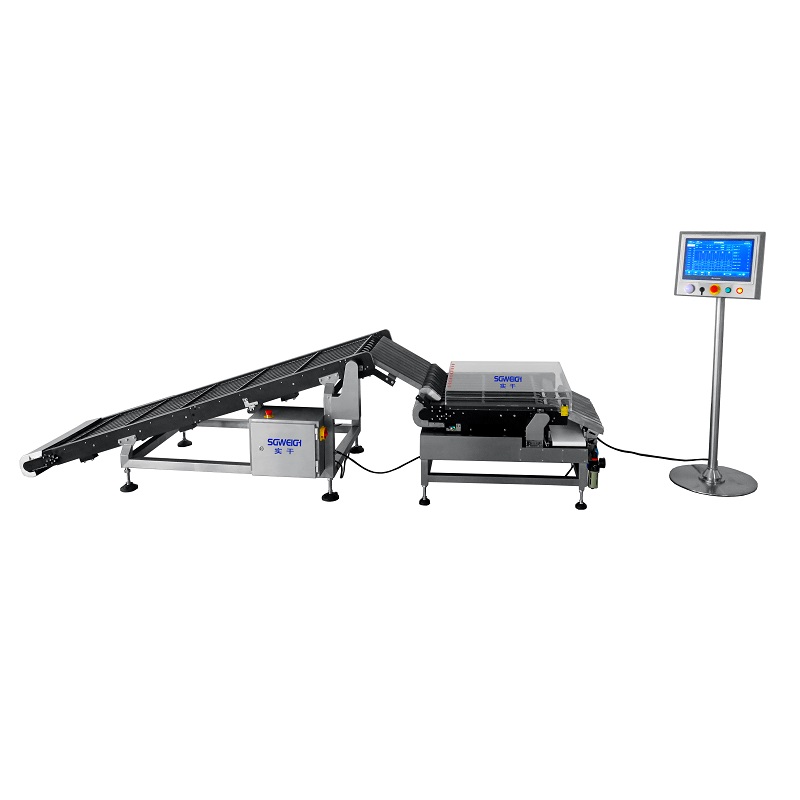

This Small Bag Checkweigher is a 10-column parallel high-speed dynamic weight detection system, specifically designed for 100% inspection of independently packaged products running simultaneously on multiple production lines, significantly improving production line inspection efficiency.
Type:SG-10X
Weighing scope:1-50g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Speed:40-60 pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
(the number of channels can be customized)
◆ Multi-channel synchronous detection: 10 independent weighing modules can operate in parallel, achieving a detection speed of up to hundreds of pieces per minute.
◆ High-precision weighing system: Equipped with high-sensitivity sensors and high-speed sampling chips, ensuring minimal weight detection error.

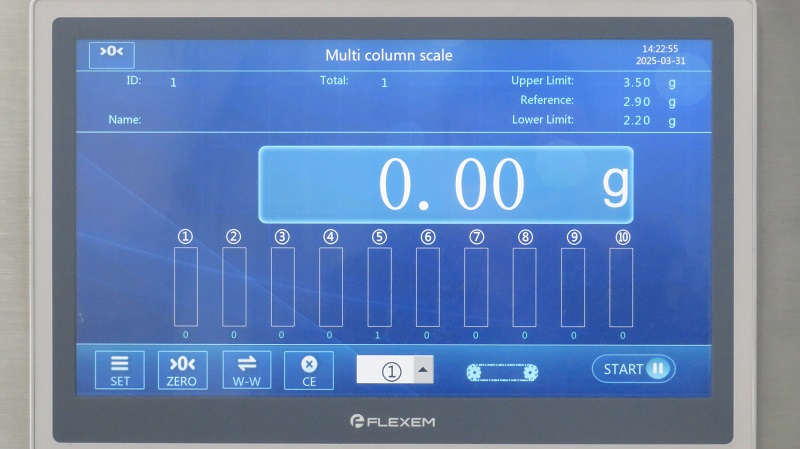

◆ Intelligent data management: Built-in touchscreen control system displays real-time weight data, statistics, and alarm records for each channel.
◆ Automatic rejection function: Lift-type rejection method, customizable for different packaging formats.
◆ Modular structure design: Each weighing unit can be independently disassembled and reassembled for convenient maintenance and adaptability to different product specifications.

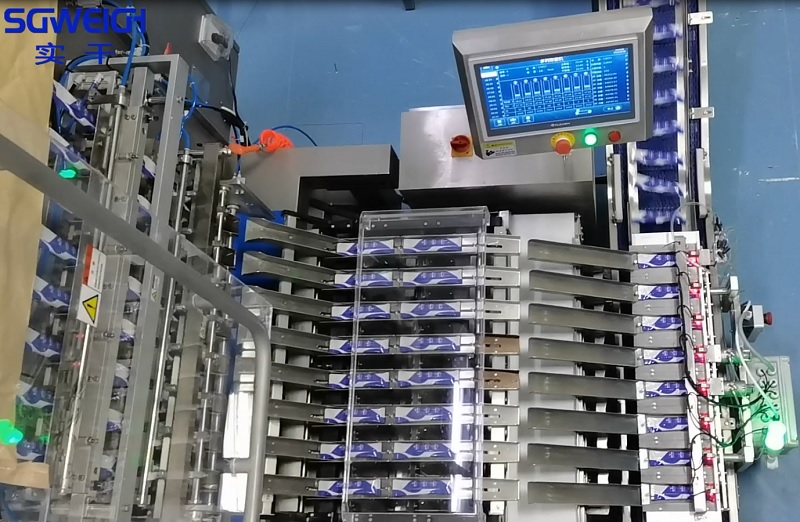

◆ Strong compatibility: Seamlessly integrates with multi-row packaging machines, filling machines, or repackaging production lines for intelligent production inspection.
◆ Data traceability and networking function: Supports connection with MES and ERP systems for convenient quality management and production tracking.

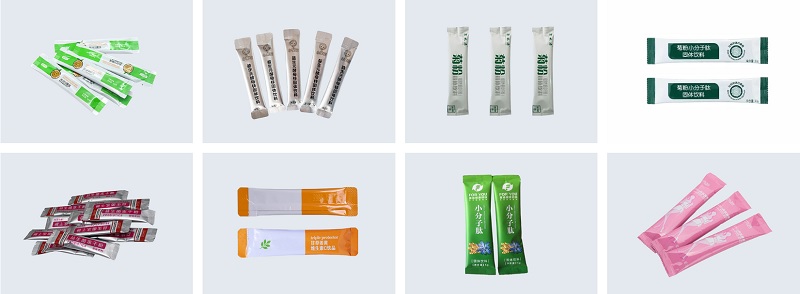

Multi Lane Checkweigher is widely used in industries with extremely high requirements for measurement accuracy and speed, such as pharmaceuticals (tablets, capsules, bagged granules, blister packs), food (small bags, tubes, snacks), and cosmetics, for ultra-small or high-density small-package products.
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
