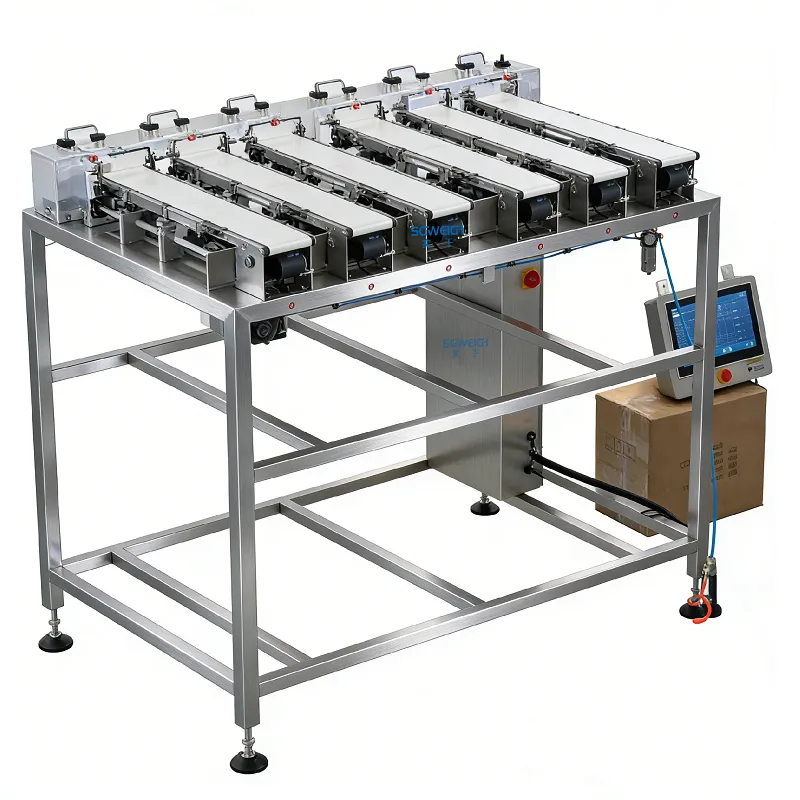

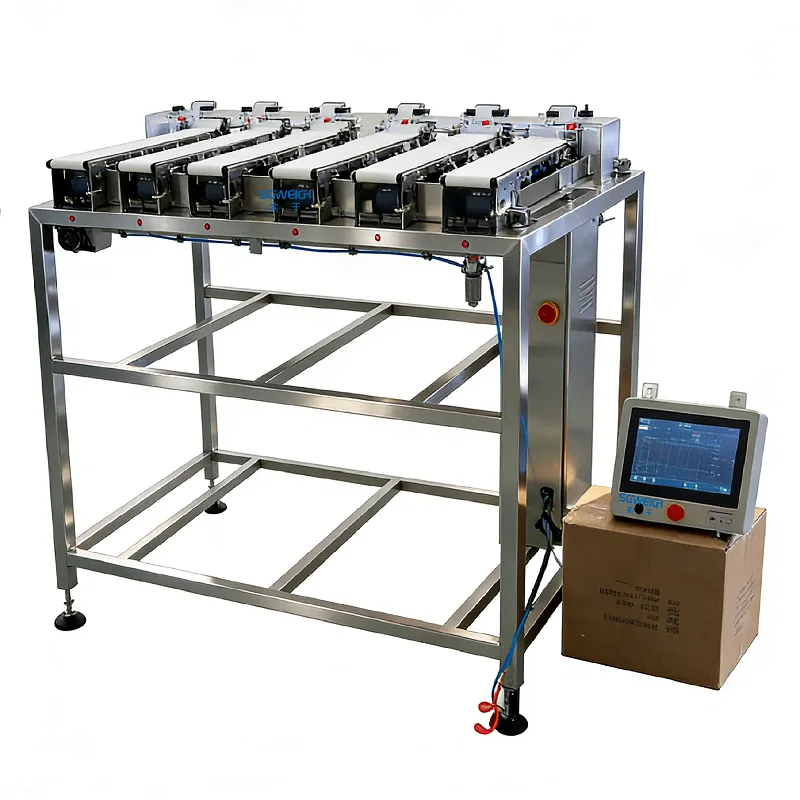

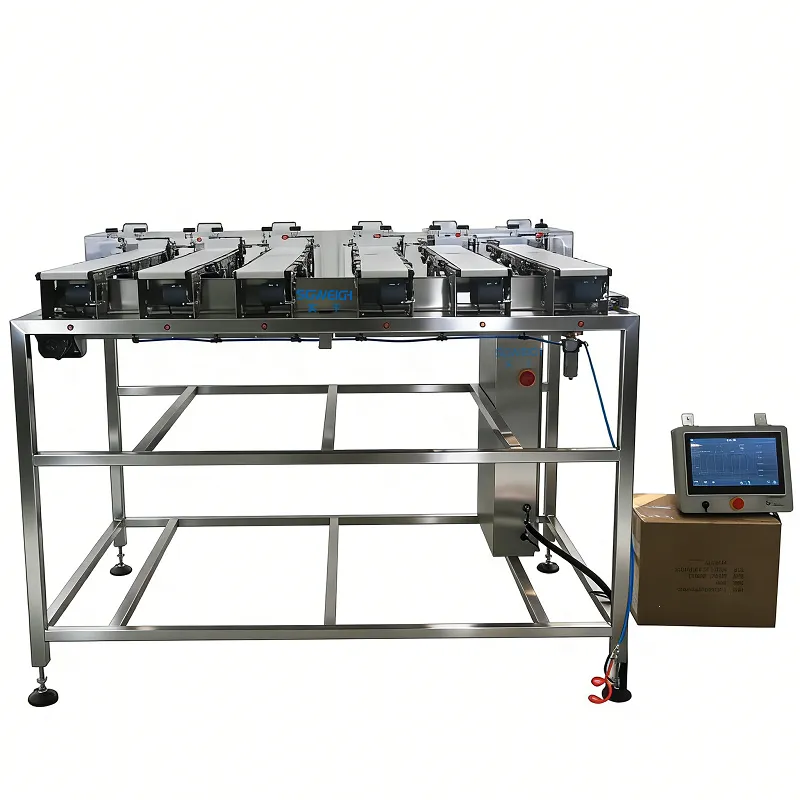

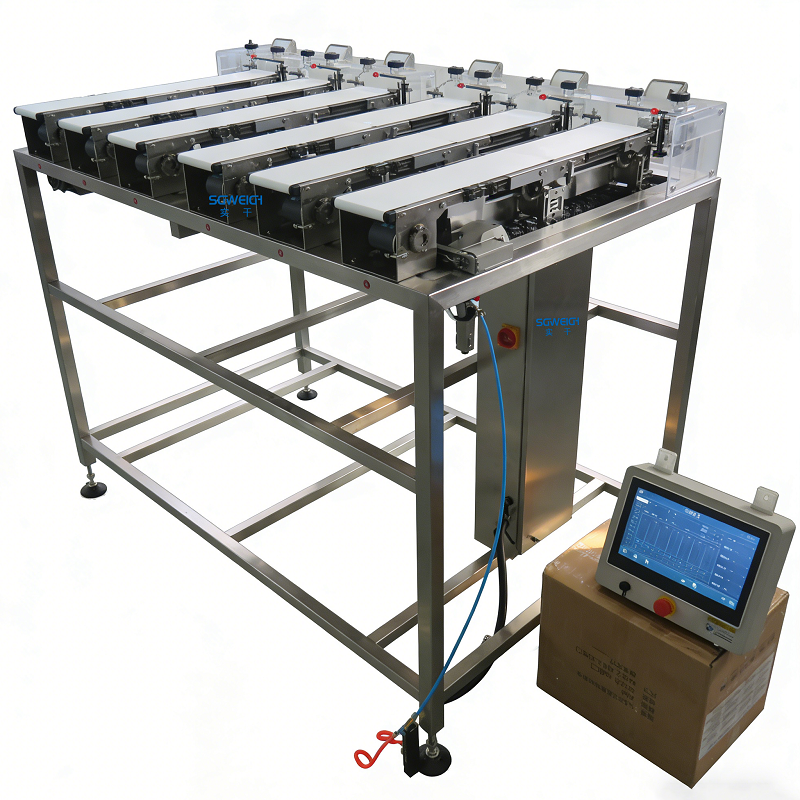

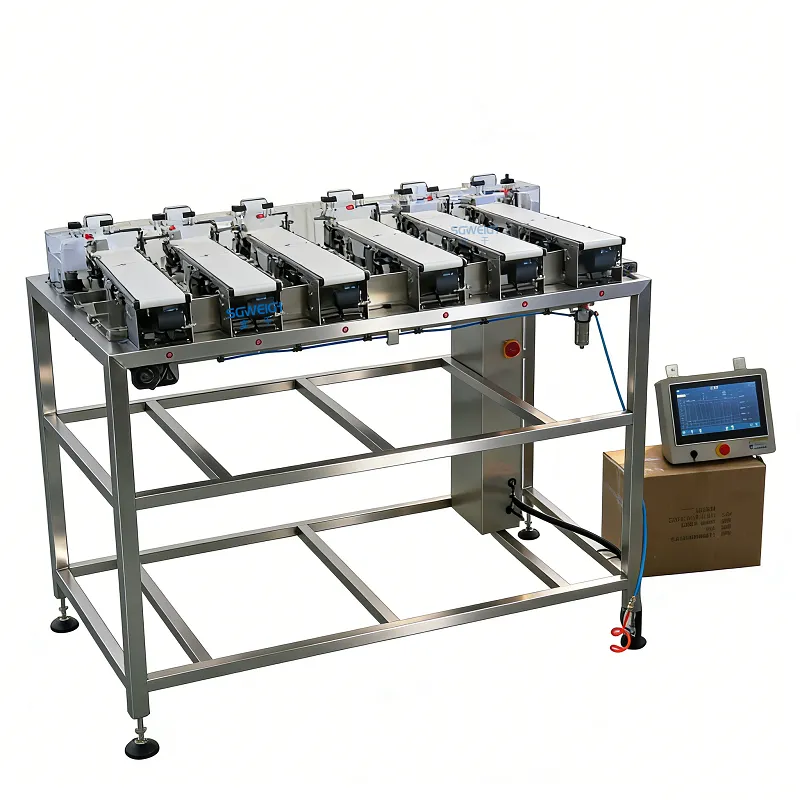

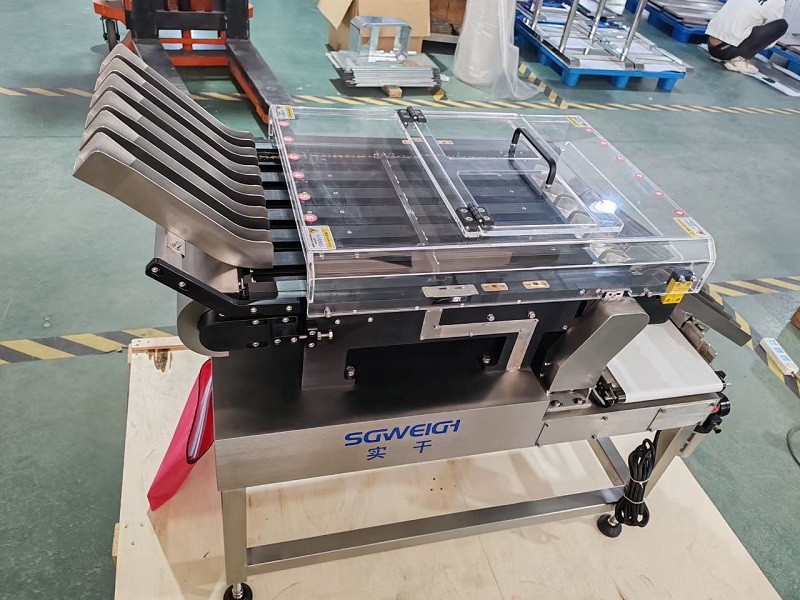

The 6-Lane Stick Pack Industrial Checkweigher is an automatic weight detection device specifically designed for multi-column high-speed strip
bag packaging production lines. It can simultaneously perform online dynamic weighing and judgment on 6 columns of strip bag products,
achieving high-speed, high-precision, and fully automatic weight control.

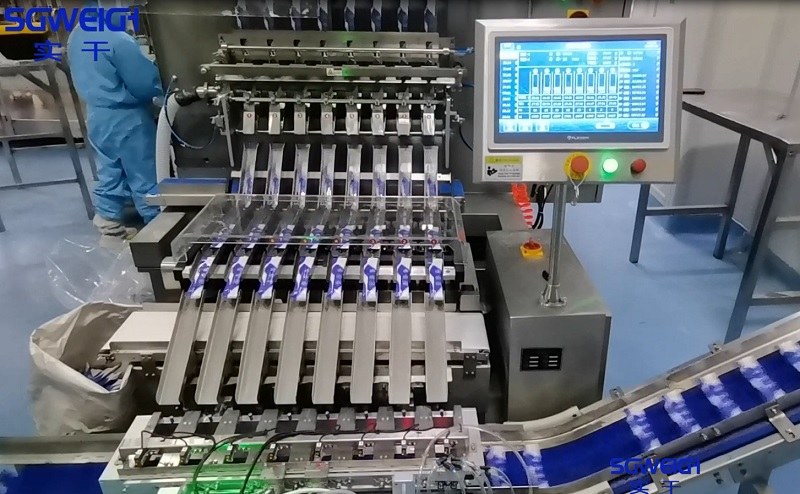

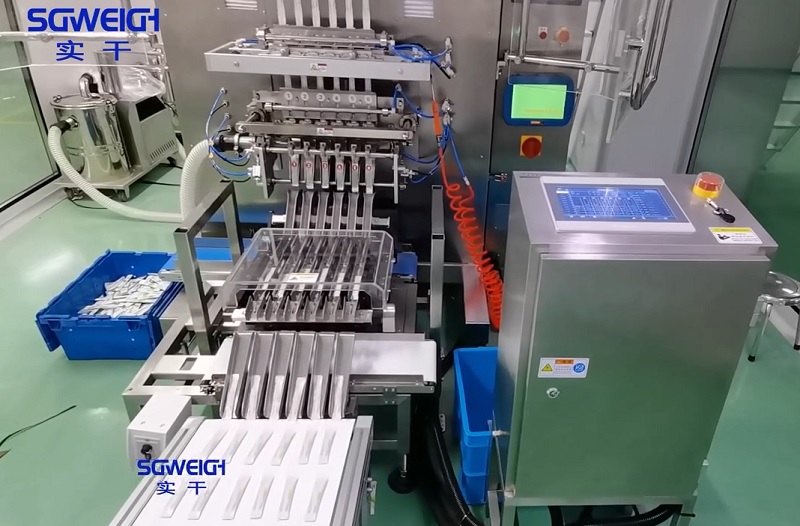

This Multilane Checkweigher is typically installed at the rear end of a multi-column strip bag packaging machine and is suitable for powder,
granule, liquid, and paste strip bags, such as nutritional powder, coffee powder, functional powders, seasonings, and pharmaceutical strip bags.
Through independent weighing units and intelligent algorithms, it ensures that each column and each strip bag meets the set weight standards.
Model:SG-6X
Weighing Range:1-200g
Accuracy: 0.01 gram (depending on the product)
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Windshield:Thick acrylic (to avoid airflow interference)
1. Six Independent Weighing Channels Design
Each channel is equipped with an independent high-sensitivity weighing sensor, enabling parallel detection without interference.
2. High-Speed Dynamic Weighing System
Suitable for continuous high-speed output environments, ensuring stable accuracy even at high cycle times.
3. Intelligent Weight Judgment and Grading Logic
Supports multiple weight range judgments (qualified/underweight/overweight) to meet quality control requirements.
4. Precise Rejection System (Optional)
Flip-plate rejection, suitable for large packages or high-speed production lines.
Food strip packets (coffee powder, protein powder, flavoring powder)
Pharmaceutical and health product strip packets
Functional nutritional supplements
Small-dose chemical strip packets
Daily chemical powder/granule strip packets
Our machines is fully tested and calibrated before delivery.

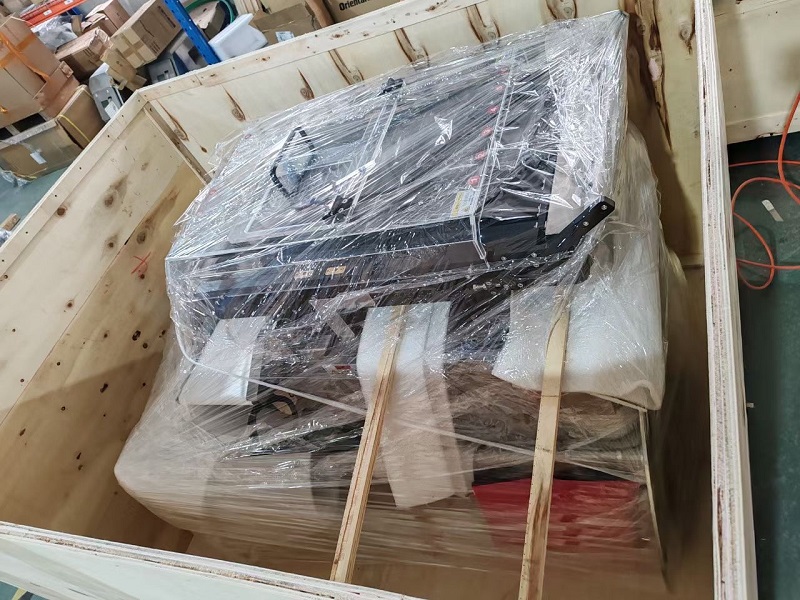

It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
