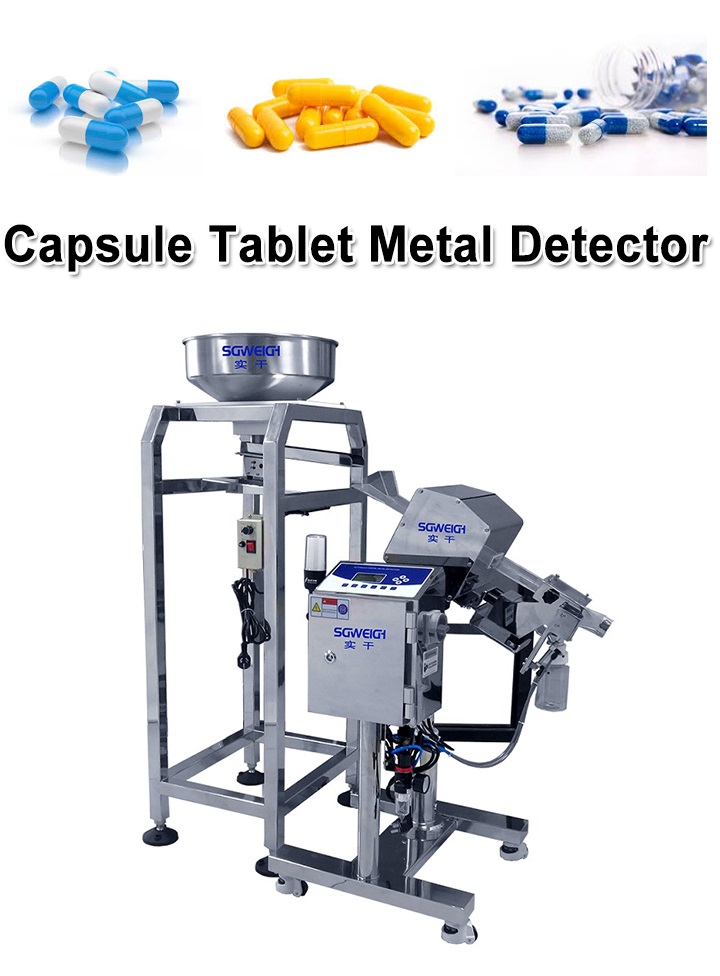

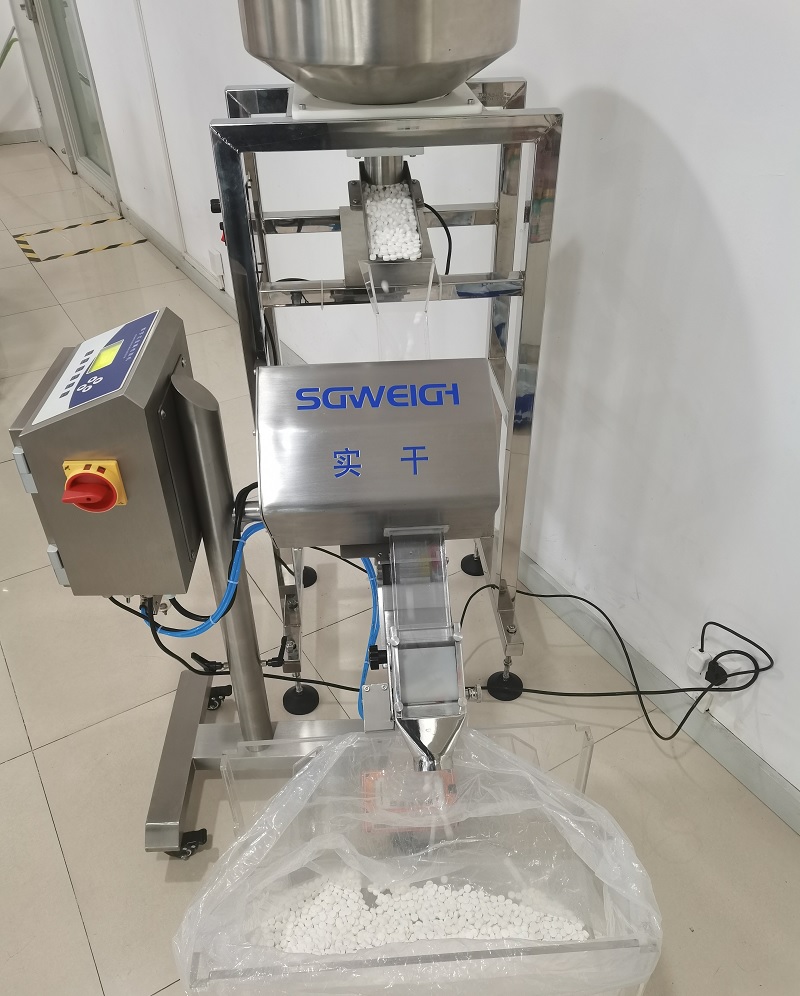

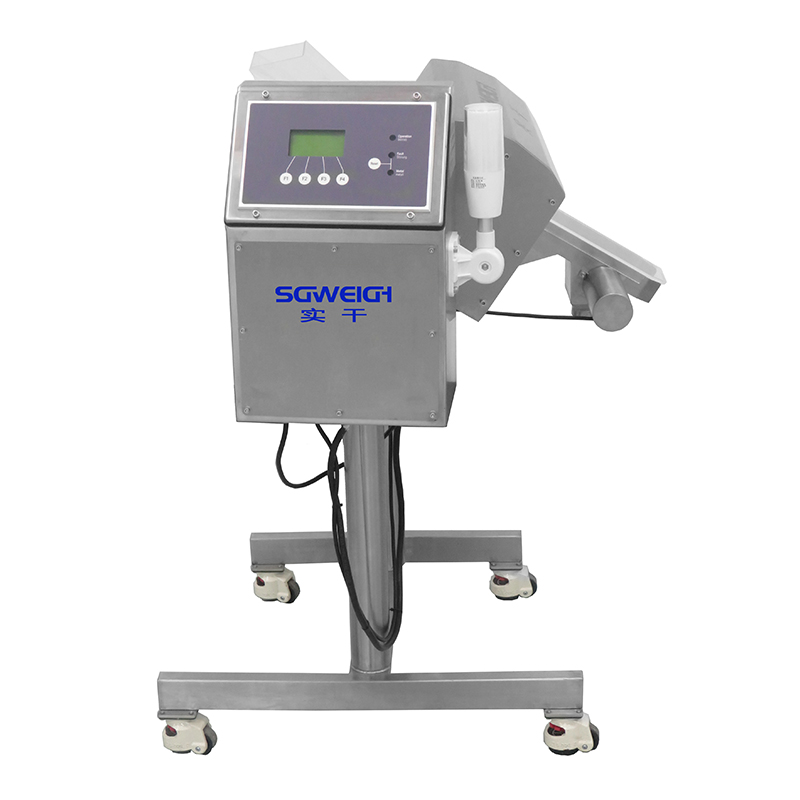

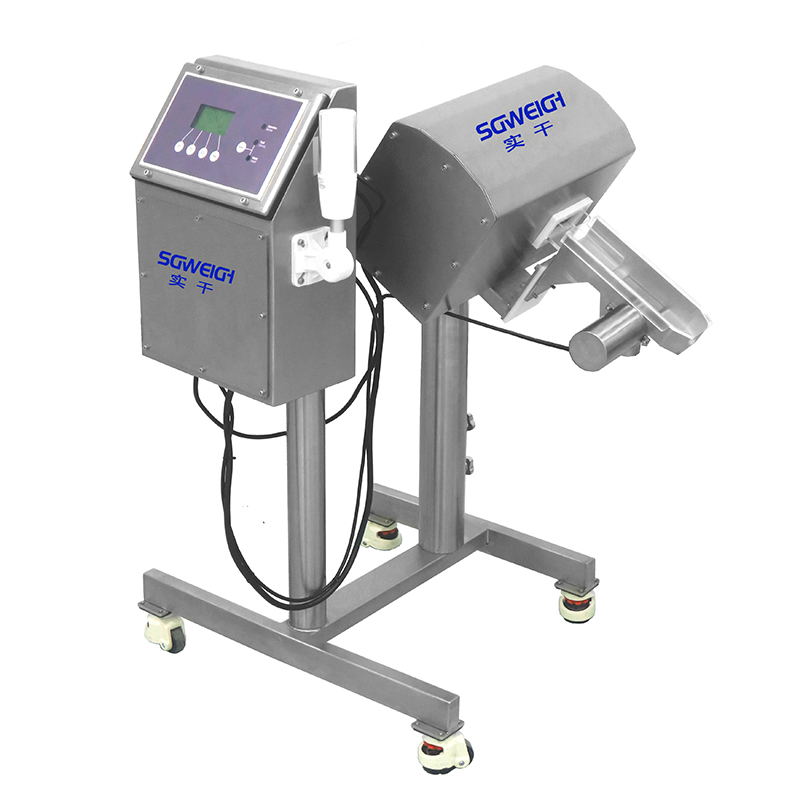

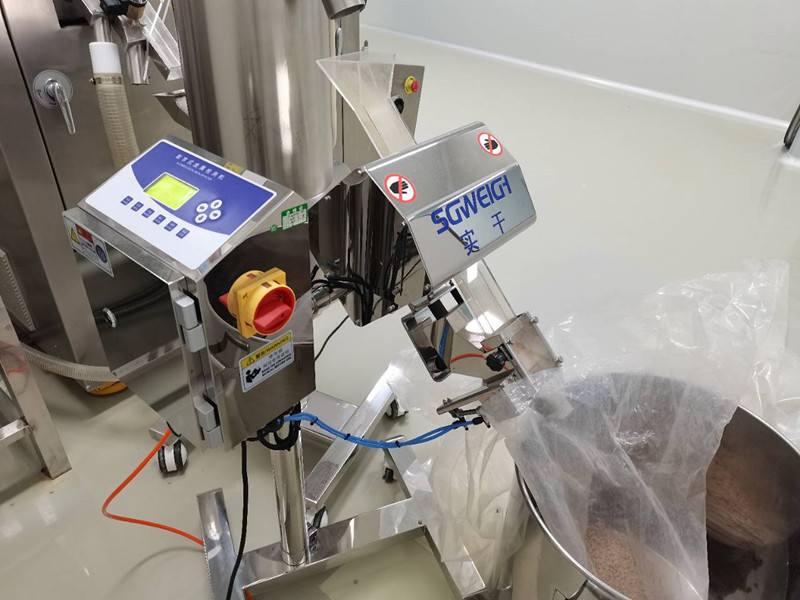

Tablet Metal Detector Machine designed specifically for production-grade pharmaceuticals, delivering exceptional sensitivity and accuracy while increasing product yield.Designed to detect and remove metal contaminants (ferrous, non-ferrous and stainless steel) from tablets, capsules and similar small products.
Type:SG-M50

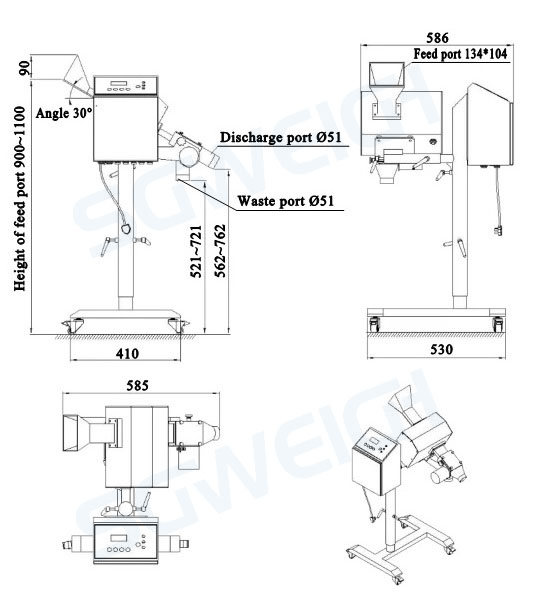

Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
1. 100% in-line inspection of capsules and tablets.
2. Rugged and durable, made of 304/316L stainless steel.
3. Capable of detecting even trace amounts of ferrous, non-ferrous, or stainless steel metals.
4. Fully FDA-compliant, with built-in safety features and data control.
5. Compatible with tablet presses or filling machines.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
